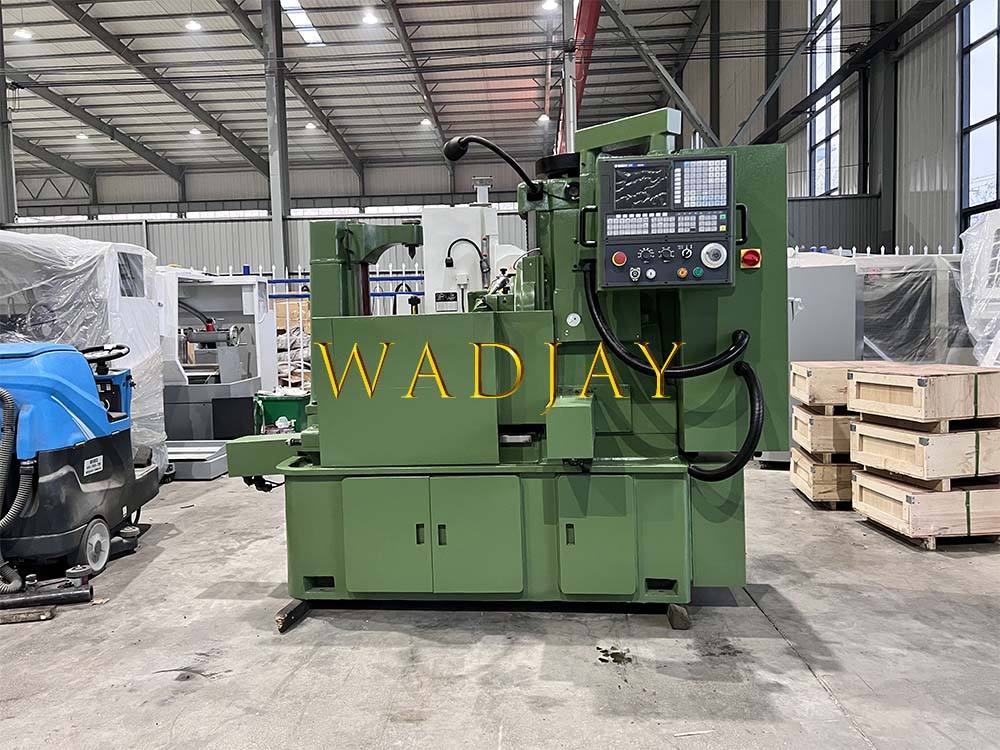

YK5150 CNC Vertical Gear Shaping Machine

YK5150 CNC Vertical Gear Shaping Machine

Model: YK5150

Quick Specifications

Working Area:	3200 × 2200 × 2600mm
Spindle Speed:	100 - 500strokes/min
Accuracy:	GB/T 6 (ISO 6)
Tool Capacity:	24

Product Video

Watch on YouTube for best quality

Description

The YK5150 is a fully automatic CNC vertical gear shaping center, engineered for the high-efficiency, high-precision manufacturing of internal gears, external spur gears, helical gears, spline shafts, and special-shaped gears. It is a core piece of automated equipment in automotive transmission, precision reducer, and mold manufacturing industries, delivering exceptional consistency and efficiency for mass production and complex gear prototyping.

Built with a reinforced, stress-relieved cast iron frame and a high-rigidity CNC-controlled reciprocating ram, it eliminates manual operation errors and ensures ultra-stable cutting performance. Equipped with a professional industrial CNC system, automatic tool compensation, and a fully enclosed protective structure, it minimizes labor intensity and maintenance requirements, while meeting global safety and quality standards.CE/ISO Certified, Factory Direct.

Technical Specifications

Parameter	Unit	YK5150 Standard Value
Max. Machining Module	mm	8
Max. External Gear Diameter	mm	500
Max. Internal Gear Diameter	mm	400
Max. Gear Face Width	mm	150
Ram Stroke Range	mm	20 – 150
Ram Stroke Frequency	strokes/min	100 – 500
Main Motor Power	kW	7.5
Control System	–	3-Axis CNC Servo System
Machining Accuracy Grade	–	GB/T 6 (ISO 6)
Net Weight	kg	7800
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Dimensions (L×W×H)	mm	3200 × 2200 × 2600

Features

✅ Fully CNC Automated Operation

3-axis independent servo drive enables automatic gear cutting, tool compensation, and multi-step programming, reducing human error by 90% and improving production efficiency by 60% compared to manual gear shapers.

✅ High-Rigidity Precision Structure

Reinforced ram guideways and heavy-duty cast iron bed ensure zero deflection during high-speed cutting, delivering superior surface finish and long-term dimensional stability for precision gears.

✅ Versatile Gear Machining Capability

Supports internal gears, external gears, helical gears, splines, racks, and special-shaped gears, covering 95% of common gear processing needs in precision manufacturing.

✅ User-Friendly CNC Interface

Intuitive touchscreen control panel with 3D simulation and one-click operation, reducing operator training time and enabling complex gear programming in minutes.

✅ Complete Safety & Protection System

Fully enclosed protective hood, emergency stop, overload protection, and chip splash prevention, ensuring operator safety and a clean workshop environment.

✅ Centralized Lubrication & Chip Removal

Automatic centralized lubrication system extends service life, while the built-in chip removal system ensures continuous, efficient production.

✅ Global Export Ready

CE-certified, with customizable voltage, control system, and complete export documentation, suitable for international shipping and global customer projects.
