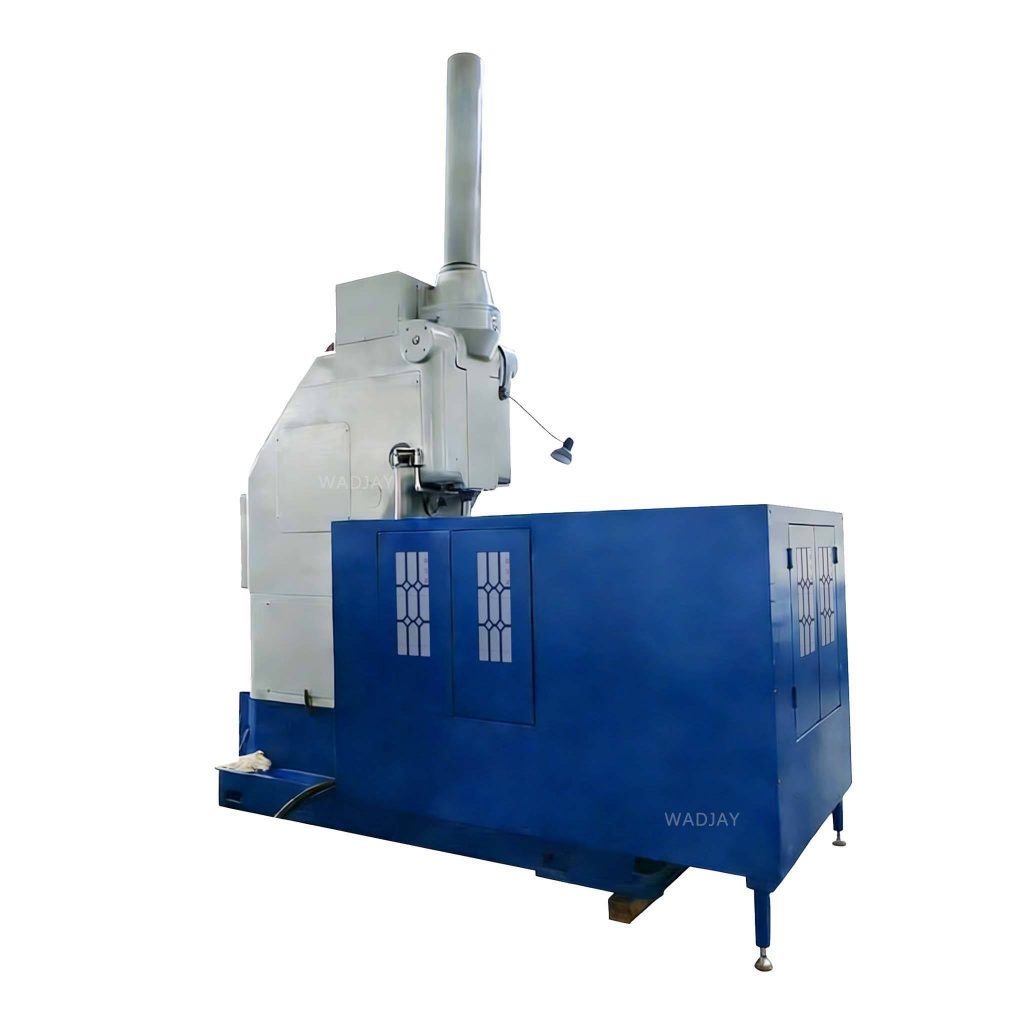

YK58 CNC Gear Shaping Machine

Model: YK58

Quick Specifications

Working Area:	4500 × 3200 × 4800mm
Spindle Speed:	80 - 400strokes/min
Accuracy:	GB/T 6 (ISO 6)
Tool Capacity:	3-Axis CNC Servo System

Product Video

Watch on YouTube for best quality

Description

The YK58 is a fully automated, high-rigidity CNC vertical gear shaping center, engineered for the high-efficiency, ultra-precise manufacturing of large internal gears, external spur gears, helical gears, spline shafts, and complex gear profiles. It is a core automated equipment in heavy machinery, wind power, automotive axle, and reducer manufacturing industries, delivering exceptional consistency and efficiency for mass production and custom gear prototyping.

Built with a reinforced, stress-relieved Meehanite cast iron frame and a high-torque CNC-controlled reciprocating ram, it eliminates manual operation errors and ensures ultra-stable cutting performance for large-diameter workpieces. Equipped with a professional industrial CNC system, automatic tool compensation, and a fully enclosed protective structure, it minimizes labor intensity and maintenance requirements, while meeting global safety and quality standards.CE/ISO Certified, Factory Direct.

Technical Specifications

Parameter	Unit	YK58 Standard Value
Max. Machining Module	mm	12
Max. External Gear Diameter	mm	800
Max. Internal Gear Diameter	mm	650
Max. Gear Face Width	mm	200
Ram Stroke Range	mm	50 – 250
Ram Stroke Frequency	strokes/min	80 – 400
Main Motor Power	kW	15
Control System	–	3-Axis CNC Servo System
Machining Accuracy Grade	–	GB/T 6 (ISO 6)
Net Weight	kg	12500
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Dimensions (L×W×H)	mm	4500 × 3200 × 4800

Features

✅ Fully CNC Automated Operation

3-axis independent servo drive enables automatic gear cutting, tool compensation, and multi-step programming, reducing human error by 95% and improving production efficiency by 70% compared to manual gear shapers.

✅ Heavy-Duty Large-Workpiece Compatibility

Reinforced ram guideways and heavy-duty cast iron bed ensure zero deflection during high-torque cutting, supporting large gears up to 800mm in diameter, ideal for wind power and heavy machinery components.

✅ Versatile Gear Machining Capability

Supports internal gears, external gears, helical gears, splines, racks, and special-shaped gears, covering 98% of common large gear processing needs in heavy industry.

✅ User-Friendly CNC Interface

Intuitive touchscreen control panel with 3D simulation and one-click operation, reducing operator training time and enabling complex gear programming in minutes.

✅ Complete Safety & Protection System

Fully enclosed protective hood, emergency stop, overload protection, and chip splash prevention, ensuring operator safety and a clean workshop environment.

✅ Centralized Lubrication & Chip Removal

Automatic centralized lubrication system extends service life, while the built-in chip removal system ensures continuous, efficient production.

✅ Global Export Ready

CE-certified, with customizable voltage, control system, and complete export documentation, suitable for international shipping and global customer projects.
