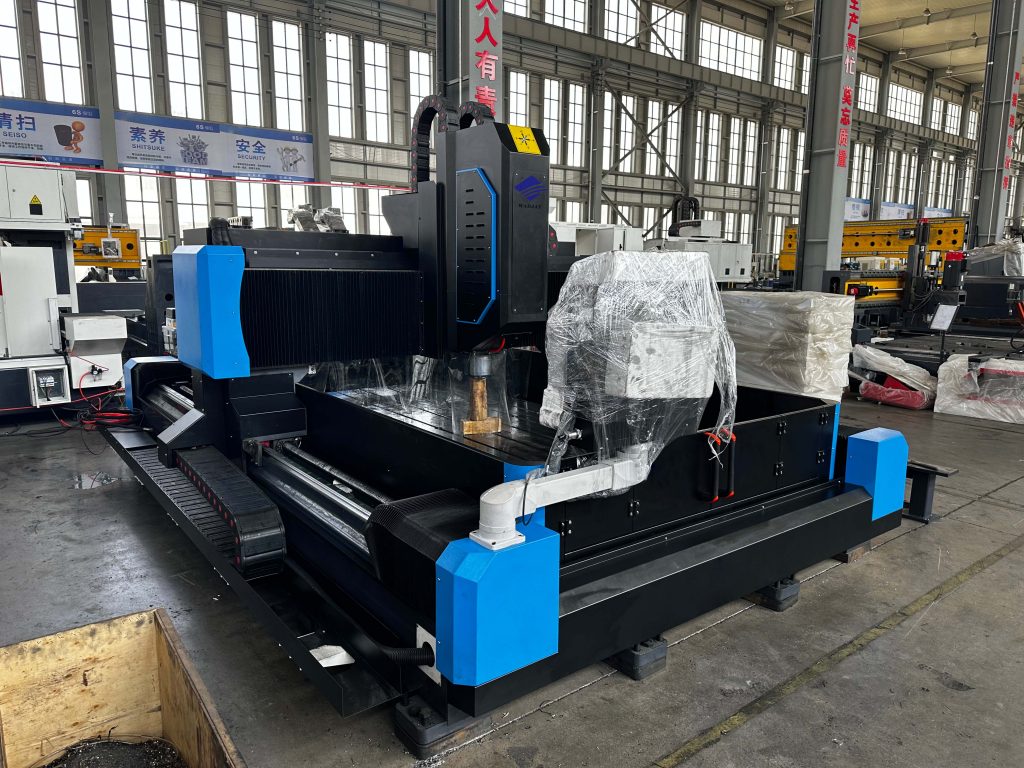

YWT-3000 Gantry-Type CNC Drilling & Milling Machine
Model: YWT-3000
Quick Specifications
| Working Area: | 7500 × 4500 × 4200mm |
| Spindle Speed: | 60 - 6000r/min |
| Accuracy: | ±0.02 |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | YWT-3000 Standard Value |
|---|---|---|
| Table Size | mm | 3000 × 1500 |
| Max. Travel (X/Y/Z) | mm | 3000 / 1500 / 800 |
| Spindle Taper | — | BT50 |
| Spindle Speed Range | r/min | 60 – 6000 |
| Main Motor Power | kW | 18.5 |
| Rapid Traverse Speed | m/min | 15 / 15 / 8 |
| Machining Accuracy | mm | ±0.02 |
| Net Weight | kg | 28000 |
| Standard Power Supply | — | 3 Phase 380V, 50Hz |
| Customizable Voltage | — | 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 7500 × 4500 × 4200 |
Features
✅ Superior Gantry Structural Rigidity
Heavy-duty cast iron gantry and base with linear guideway design eliminates vibration during high-torque cutting, ensuring perfect surface finishes and long-term precision retention for large workpieces.
✅ High-Efficiency Multi-Process Machining
Integrates drilling, milling, boring, tapping, and countersinking in one setup, reducing secondary operations and improving production efficiency by 60% compared to traditional machines.
✅ Large-Format Worktable
3000×1500mm oversized table supports clamping of extra-large steel plates, structural beams, and heavy mechanical parts, eliminating the need for multiple repositioning.
✅ Advanced CNC Control System
Professional-grade controller with intuitive G-code programming, 3D simulation, and automatic tool length compensation, reducing operator training time and improving programming accuracy.
✅ Smart Safety & Protection System
Equipped with emergency stop buttons, safety interlocks, automatic overload protection, and a fully enclosed safety guard, ensuring operator safety and preventing chip splashing.
✅ Global Export Ready
Customizable working table size, spindle power, and control system to meet international project requirements, with complete export documentation and after-sales support.
