Wadjay BS-712N horizontal metal band saw cuts up to 180mm round steel at 90°, 110mm at 45°. Two-speed 35/70 m/min, cast iron frame, CE certified, 220V/380V customizable. Get factory quote.
Horizontal Metal Band Saw BS-712N — Compact Heavy-Duty Metal Cutting Solution
Why Choose the BS-712N Horizontal Metal Band Saw?
A horizontal metal band saw is the workhorse of any metal fabrication shop, maintenance facility, or small workshop that needs precise, repeatable cuts on steel bars, pipes, and profiles. The Wadjay BS-712N horizontal metal band saw delivers exactly that — a compact, heavy-duty metal cutting solution built around a rigid cast iron frame and a high-torque motor, capable of handling both one-off cuts and low-volume production runs with consistent accuracy.
With a maximum round cutting capacity of 180mm at 90° and 110mm at 45°, the BS-712N is the ideal entry point for workshops that need industrial-grade cutting performance without the footprint or cost of fully automatic models. Its two-speed blade control (35/70 m/min) accommodates everything from mild steel to harder alloys, while the manual feed system with adjustable cutting angle makes it intuitive for operators of all skill levels.
Key Technical Specifications
| Parameter | BS-712N Specification |
|---|---|
| Model | BS-712N |
| Max. Round Cutting @ 90° | 180 mm |
| Max. Square Cutting @ 90° | 180 × 180 mm |
| Max. Round Cutting @ 45° | 110 mm |
| Max. Square Cutting @ 45° | 100 × 100 mm |
| Blade Size (L×W×T) | 1640 × 13 × 0.65 mm |
| Blade Speed | 35 / 70 m/min (2-Speed) |
| Main Motor Power | 0.75 / 1.1 kW |
| Control System | Manual |
| Net Machine Weight | 110 kg |
| Power Supply | 1-Phase 220V / 3-Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | 950 × 450 × 950 mm |
| Working Area | 950 × 450 × 950 mm |
| Tool Capacity | 12 |
| Spindle Speed | 35 / 70 (2-Speed) m/min |
| Accuracy | Manual |
| Certification | CE Certified |
Core Features & Engineering Highlights
The Wadjay horizontal metal band saw BS-712N integrates six engineering advantages that set it apart in the entry-level industrial segment:

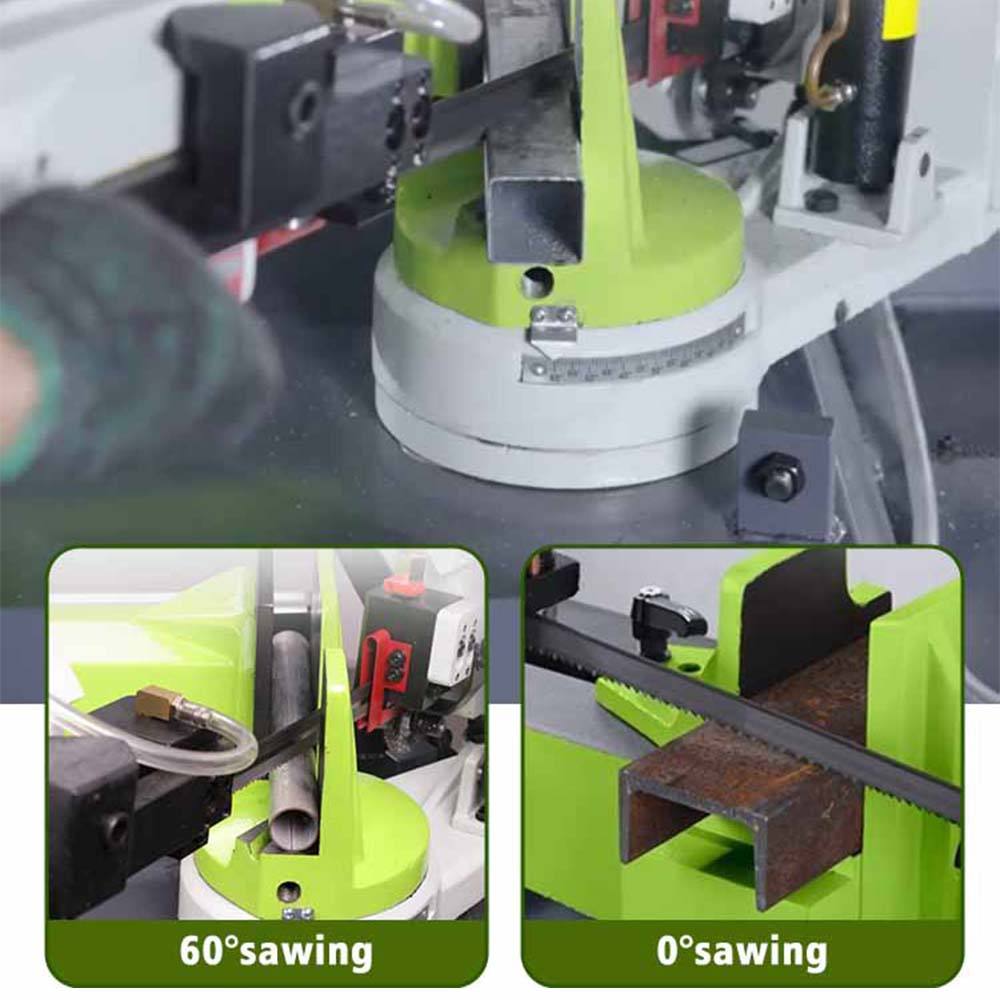

- Versatile Cutting Performance — Capable of cutting round, square, and rectangular metal bars at 0° to 45° angles, suitable for a wide variety of fabrication and maintenance tasks
- Compact & Space-Saving Design — Small footprint (950×450×950mm) fits easily into small workshops or limited workspaces without sacrificing cutting power
- Adjustable Blade Speed — Two-speed settings (35/70 m/min) accommodate different materials, from mild steel to harder alloys, ensuring optimal cutting performance and blade life
- Simple & Intuitive Operation — Manual feed and easy angle adjustment allow for quick setup, making it suitable for operators of all skill levels
- Low Maintenance & Cost-Effective — Durable construction and readily available standard parts keep maintenance costs low, making it an economical solution for small businesses
- Global Export Ready — Fully CE-certified with customizable voltage configurations (1-Phase 220V / 3-Phase 380V) and complete export documentation
Application Scenarios
The BS-712N horizontal metal cutting band saw serves a wide spectrum of industries and users :
- 🔧 Small Workshops & Job Shops — ideal for straight and mitre cuts on mild steel, aluminum, and profiles
- 🏭 Maintenance Facilities — reliable for both one-off cuts and low-volume production runs in industrial maintenance
- 🏗️ Metal Fabrication Shops — precision cutting of steel bars, pipes, and profiles for structural and mechanical applications
- 🏠 Hobbyists & Maker Spaces — compact enough for limited workspaces while delivering industrial-grade cutting performance
- 🚗 Automotive & Motorsport — cutting round and square stock for custom fabrication and repair
The machine handles a full range of metal stock — from 180mm round bar at 90° down to 100×100mm square stock at 45° mitre cuts — making it exceptionally versatile for mixed-material workshops.
Why Wadjay’s BS-712N Horizontal Metal Band Saw Stands Out
- True industrial construction — rigid cast iron frame ensures stability during cutting operations, minimizing vibration for clean, accurate cuts
- Optimal speed flexibility — two-speed blade control (35/70 m/min) lets operators match blade speed to material hardness, extending blade life and improving cut quality
- High-torque motor — 0.75/1.1 kW motor delivers reliable power for continuous cutting of steel bars and profiles
- Manual precision — adjustable cutting angle with easy-to-use manual feed system makes it ideal for a wide range of materials and applications
- CE certified & export ready — fully compliant with European safety standards, customizable voltage (1-Phase 220V / 3-Phase 380V, 50Hz) for global deployment
- Cost-effective operation — durable construction and readily available standard parts keep maintenance costs low
- Factory-direct pricing — no distributor markup; direct from Wadjay Machinery Export Co., Ltd.
Frequently Asked Questions
Q1: What is the maximum cutting capacity of the BS-712N horizontal metal band saw?
A: At 90°, the machine cuts up to 180mm round bar or 180×180mm square bar. At 45° mitre angle, it handles up to 110mm round or 100×100mm square stock .
Q2: What materials can the BS-712N cut?
A: The machine is designed for cutting steel bars, pipes, and profiles. The two-speed blade control (35/70 m/min) accommodates different materials, from mild steel to harder alloys, ensuring optimal cutting performance .
Q3: Is the machine truly manual, or does it have any automation?
A: The BS-712N is a manual horizontal metal band saw — it features manual feed and easy angle adjustment for quick setup . This makes it ideal for small workshops, maintenance facilities, and operators of all skill levels who need reliable, cost-effective cutting without the complexity of hydraulic or CNC systems .
Q4: What is the blade size and how often does it need replacement?
A: The machine uses a 1640 × 13 × 0.65 mm band saw blade. Blade life depends on material hardness and cutting speed selection. The two-speed control lets operators match blade speed to material, significantly extending blade life . Standard replacement blades are readily available globally.
Q5: Can the voltage be customized for my country?
A: Yes. The BS-712N supports 1-Phase 220V or 3-Phase 380V, 50Hz as standard, and can be customized to match local power supply requirements. The machine is fully CE-certified and comes with complete export documentation .
Q6: What is the footprint and weight of the machine?
A: Overall dimensions are 950 × 450 × 950 mm with a net weight of 110 kg . Its compact, space-saving design fits easily into small workshops or limited workspaces without sacrificing cutting power .
