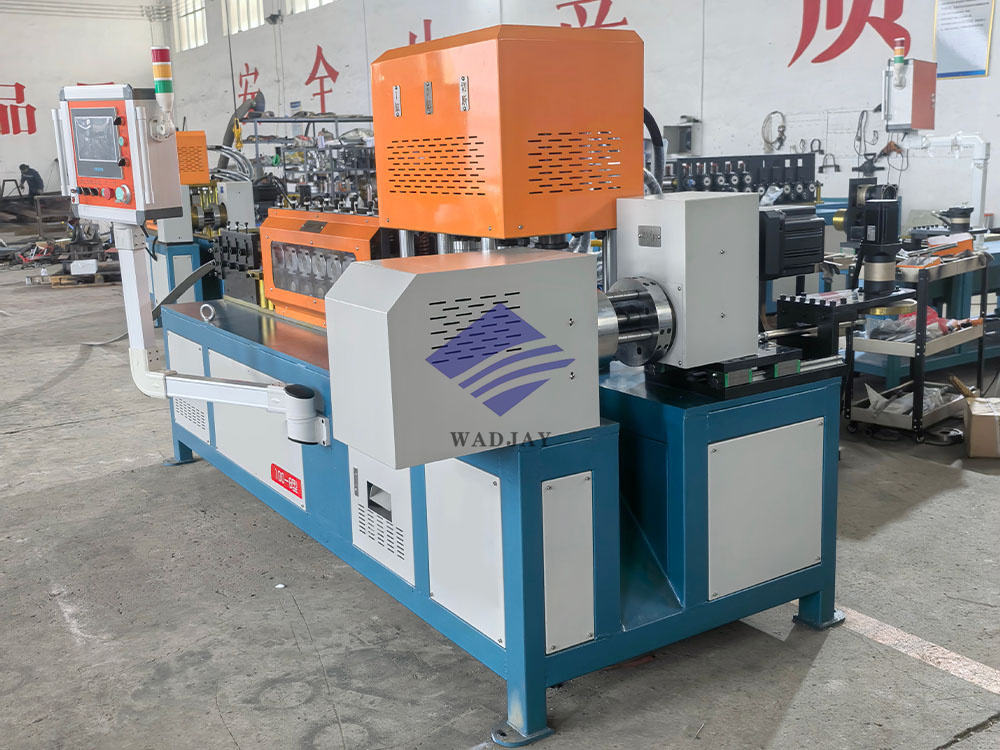

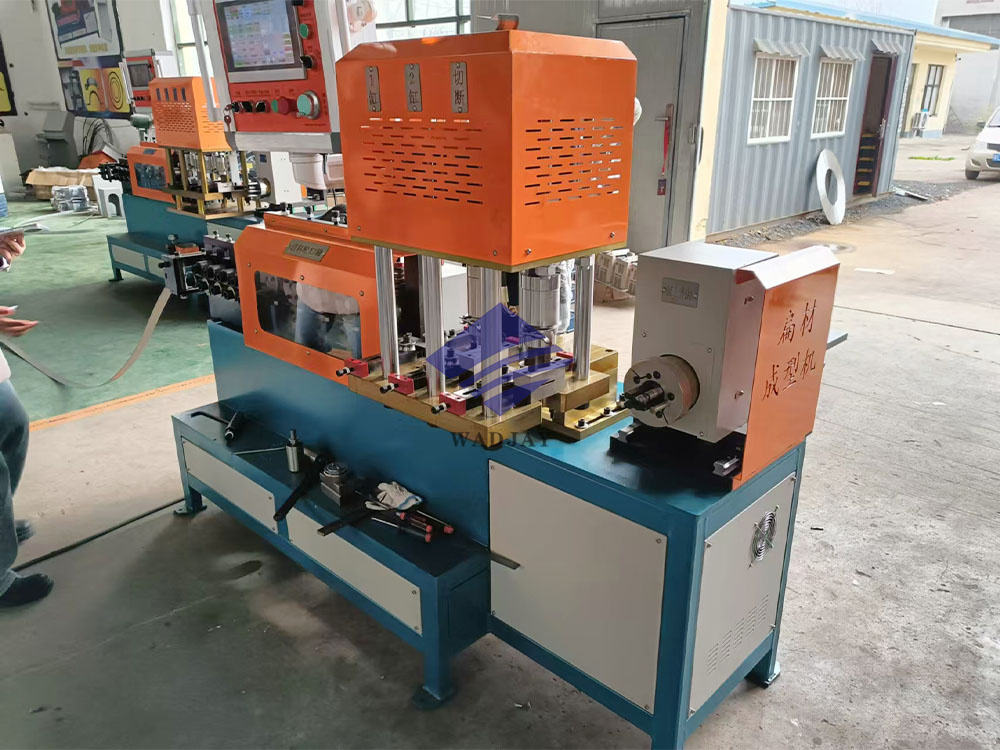

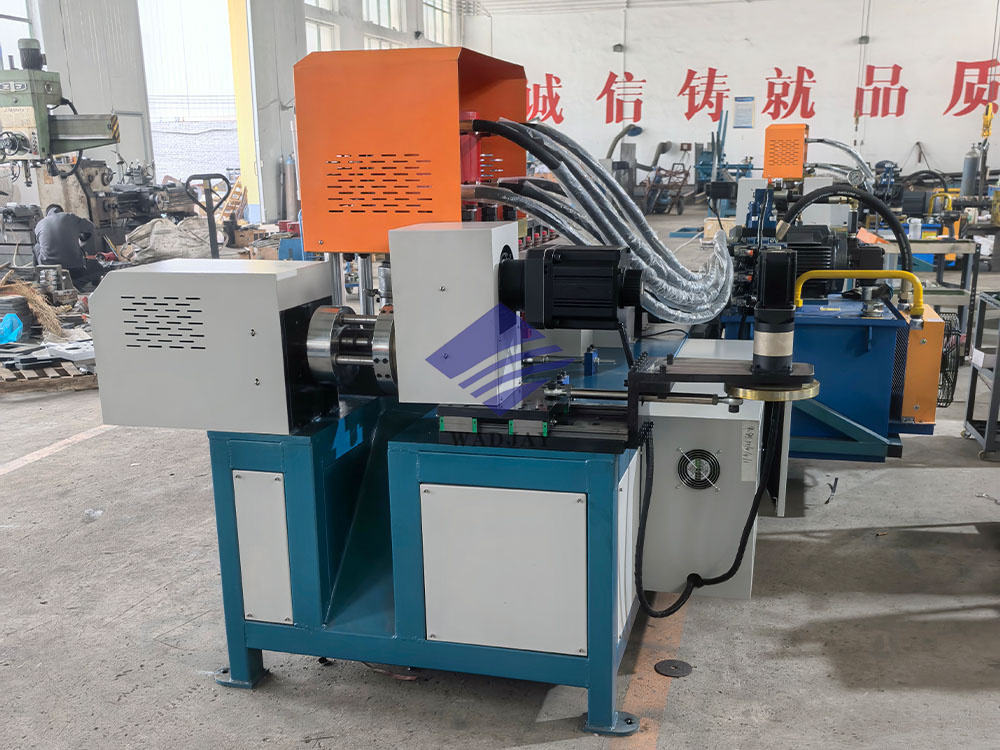

Multifunctional CNC Automatic Flat Bar Strip Bending Punching Machine — Model WADJAY-PSC100
Why Choose a Multifunctional CNC Automatic Flat Bar Strip Bending Punching Machine?
A multifunctional CNC automatic flat bar strip bending punching machine is an advanced mechanical processing solution engineered for the high-speed, continuous manufacturing of structured steel plates, flat bars, and metal strips. WADJAY-PSC100 integrates automated decoiling, high-precision roller leveling, hydraulic hole piercing, and multi-angle bending into one seamless line — transforming raw steel or stainless steel coils into finished brackets, connectors, and mounting hardware in a single continuous cycle.
Powered by a smart CNC control platform, this industrial machinery completely replaces manual press and bending operations, maximizing workshop safety, reducing material scrap, and guaranteeing perfect dimensional alignment for automotive, hardware, and structural steel processing industries. It delivers a rapid return on investment for steel fabricators worldwide.
Key Technical Specifications
| Parameter | WADJAY-PSC100 |
|---|---|
| Model | WADJAY-PSC100 |
| Processing Material | Mild Steel, Stainless Steel, Galvanized Iron |
| Strip Width Range | 30 – 100 mm |
| Max. Strip Thickness | ≤ 2.0 mm (straightening) / ≤ 3.5 mm (decoiling) |
| Feeding & Processing Speed | Max. 16 meters / minute |
| Straightening Motor Power | 3.0 kW |
| Leveling Roller Configuration | 7 Rollers Layout |
| Machine Drive & Station Setup | Gear Driven / 8 Active Forming Stations |
| Coil Inner / Outer Diameter | φ480–520 mm / φ1300 mm |
| Maximum Coil Load Capacity | ≤ 2,000 kg (2 Tons) |
| Total Net Equipment Weight | 2,500 kg (2.5 Tons) |
How the Continuous Stamping & Bending Line Works
The WADJAY multifunctional CNC automatic flat bar strip bending punching machine executes a fully synchronized 5-stage workflow:
- Heavy-Duty Decoiling — non-powered or manual expanding pay-off reel handles coil capacities up to 2 tons smoothly, feeding strip into the line
- 7-Roller Straightening — driven by a 3.0 kW motor to completely eliminate coil curvature, ensuring perfectly flat strip stock
- Multi-Station Hydraulic Punching — dynamic mechanical piercing modules execute precision mounting hole punching cleanly prior to bending
- Intelligent 4-Point Independent Forming — 8 heavy-duty gear-driven forming stations progressively shape intricate profile joints with micro-level tension control
- High-Speed Cut-off Synchronization — tracks material feed to execute burr-free cuts at speeds up to 16 meters per minute
The entire process is orchestrated by a smart CNC control platform, allowing operators to manage the production cycle with minimal manual intervention.
Application Industries & Products
The CNC flat bar bending punching machine serves a wide spectrum of metal fabrication industries:
- 🚗 Automotive — brackets, mounting hardware, structural steel plates
- 🏠 Hardware & Building Materials — connectors, flat bar fittings, steel strip components
- 🏗️ Structural Steel Processing — continuous manufacturing of steel plates and metal strips
- ⚡ Electrical & Mechanical — precision mounting hole punching for equipment assemblies
Compatible with mild steel, stainless steel, and galvanized iron coils in widths of 30–100mm, the machine adapts to virtually any flat bar specification your customers require.
Why WADJAY-PSC100 Stands Out
- Continuous stamping & bending line — decoiling, leveling, punching, bending, and cutting in a single automated cycle slashes factory labor costs
- 4-point independent adjustment — specialized roller layout provides micro-level tension control to eliminate metal twisting or surface scratching during high-speed feeding
- Heavy-duty gearbox drive — incorporates premium motor, pump, and engine core elements compliant with CE standards, guaranteeing stable 24/7 continuous shift runs
- Gear-driven 8-station forming — 8 active forming stations deliver progressive, repeatable profile shaping for complex joint geometries
- High-speed output — 16 m/min processing speed maximizes daily throughput per shift
- 2.5-ton heavy frame — total net equipment weight of 2,500 kg ensures vibration-free operation
- Competitive pricing — starting from USD 5,000, direct from Wadjay Machinery Export Co., Ltd.
- Versatile material compatibility — processes mild steel, stainless steel, and galvanized iron coils
Frequently Asked Questions
Q1: What materials can the WADJAY-PSC100 process?
A: The machine handles mild steel, stainless steel, and galvanized iron strips with widths from 30–100mm. Maximum thickness is ≤2.0mm for straightening and ≤3.5mm for decoiling.
Q2: What is the actual production speed?
A: The feeding and processing speed reaches up to 16 meters per minute, with burr-free cut-off synchronization tracking the material feed.
Q3: Is the machine truly continuous and automatic?
A: Yes. From decoiling through 7-roller leveling, hydraulic punching, 8-station gear-driven forming, and synchronized cutting — the entire cycle runs continuously under CNC control, completely replacing manual press and bending operations.
Q4: What is the coil capacity and machine footprint?
A: The decoiler handles coils up to 2,000 kg (2 tons) with inner/outer diameters of φ480–520mm / φ1300mm. The total net equipment weight is 2,500 kg (2.5 tons) for vibration-free stability.
