Project Overview
MV1160 heavy-duty CNC vertical milling center with 8000rpm spindle, ±0.008mm accuracy, 24-tool ATC. Ideal for mold making, automotive parts, and precision machining. CE & ISO certified, 3200×2600×2700mm working area.

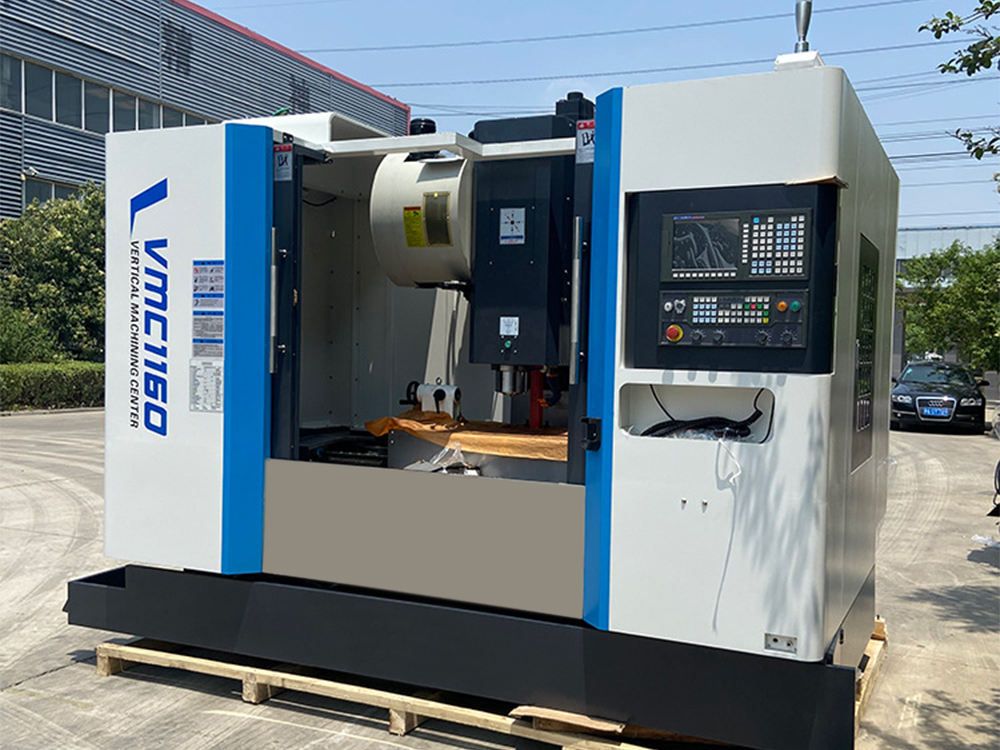

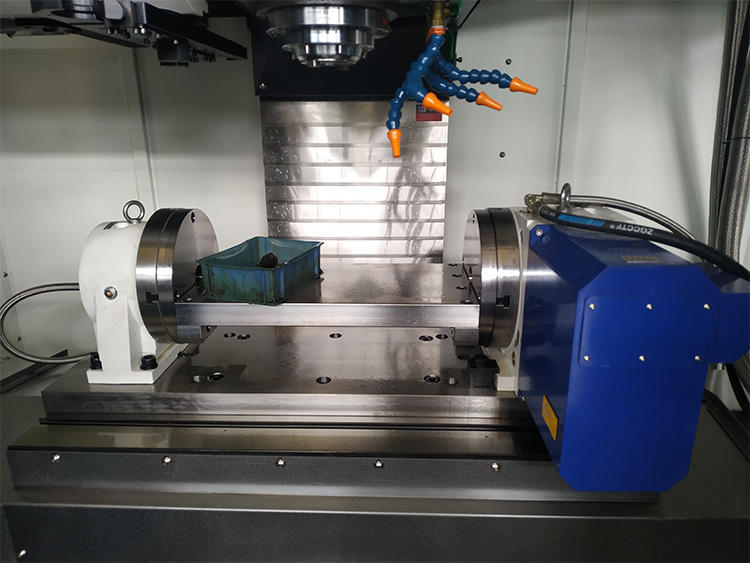

MV1160 Heavy-Duty CNC Vertical Milling Center: Precision Engineering for Demanding Manufacturing Applications
Advanced 3-Axis CNC Technology for Complex Component Machining
In the competitive landscape of modern manufacturing, precision, reliability, and efficiency are non-negotiable requirements. The MV1160 Heavy-Duty CNC Vertical Milling Center represents the pinnacle of machining technology, combining robust construction with advanced CNC capabilities to deliver exceptional performance across diverse industrial applications. Designed specifically for high-speed, high-precision machining of complex metal components, molds, automotive parts, and precision mechanical components, this machine establishes new standards for productivity and accuracy in demanding manufacturing environments.
Traditional machining centers often struggle to maintain precision under heavy cutting loads or during extended production runs. The MV1160 addresses these challenges through its reinforced box-type structure, high-speed linear guideways, and powerful spindle unit, ensuring stable cutting performance and long-term accuracy retention. With its user-friendly CNC system, automatic tool changer, and efficient chip removal system, this vertical milling center supports uninterrupted production cycles and is ideally suited for mold factories, precision machinery workshops, and automotive component manufacturing facilities seeking to optimize their machining capabilities.
Technical Specifications: Engineering Excellence in Detail
Comprehensive Performance Parameters
| Parameter | Unit | MV1160 Specification |
|---|---|---|
| Working Area | mm | 3200 × 2600 × 2700 |
| X-axis Travel | mm | 1100 |
| Y-axis Travel | mm | 600 |
| Z-axis Travel | mm | 600 |
| Working Table Size | mm | 1200 × 620 |
| Maximum Table Load | kg | 850 |
| Spindle Taper | — | BT40 |
| Spindle Speed | rpm | 8000 (Optional 10000/12000) |
| Spindle Motor Power | kW | 11 |
| Tool Changer Capacity | tools | 24 (Arm Type) |
| Positioning Accuracy | mm | ±0.008 |
| Repeatability Accuracy | mm | ±0.005 |
| Net Weight | kg | 6800 |
| Power Supply | — | 3PH 380V 50Hz |
| Machine Dimensions (L×W×H) | mm | 3200 × 2600 × 2700 |
Advanced Technological Architecture
- Extended Axis Travel: 1100mm X-axis, 600mm Y-axis, and 600mm Z-axis travel provide substantial working envelope
- High-Capacity Worktable: 1200×620mm table with 850kg load capacity accommodates large workpieces
- High-Speed Spindle: 8000rpm standard spindle (with 10000/12000rpm options) delivers optimal cutting performance
- Precision Positioning: ±0.008mm positioning accuracy and ±0.005mm repeatability ensure consistent part quality
- Robust Construction: 6800kg net weight provides exceptional stability during aggressive machining operations
Key Features: Unmatched Performance and Reliability

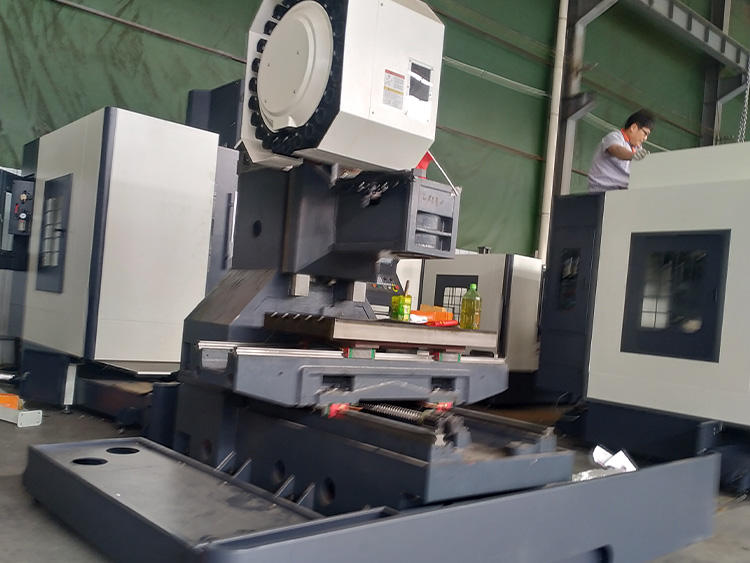

1. Reinforced Meehanite Casting Structure
The foundation of the MV1160’s exceptional performance lies in its advanced structural design:
- Maximum Rigidity: Box-type construction with reinforced ribbing minimizes vibration and deflection during heavy cutting
- Thermal Stability: Meehanite casting material provides excellent thermal stability for consistent accuracy
- Vibration Damping: Optimized mass distribution effectively absorbs cutting vibrations
- Long-Term Accuracy: Maintains precision specifications through years of continuous operation
- Durability: Designed for industrial environments with 24/7 production capabilities
2. High-Speed Linear Guideways
Advanced motion control systems ensure smooth, precise, and rapid axis movements:
- Fast Positioning: Linear guideways enable rapid traverse speeds for reduced non-cutting time
- Smooth Motion: Precision-ground rails and carriages provide frictionless movement
- High Accuracy: Maintains positioning precision even at maximum speeds
- Low Maintenance: Sealed design protects guideways from contamination
- Long Service Life: High-quality components ensure extended operational lifespan
3. Powerful BT40 Spindle System
The heart of the machining center delivers exceptional cutting performance:
- High Torque Output: 11kW spindle motor provides substantial cutting power for steel and alloy materials
- Versatile Speed Range: 8000rpm standard speed (with 10000/12000rpm options) accommodates various materials
- BT40 Taper: Industry-standard tool interface ensures compatibility with extensive tooling options
- Precision Rotation: High-precision bearings minimize runout for superior surface finishes
- Thermal Management: Advanced cooling systems maintain consistent temperature for accuracy retention
4. Reliable Arm-Type Automatic Tool Changer
Efficient tool management system maximizes productivity:
- 24-Tool Capacity: Substantial tool storage reduces setup time for complex operations
- Fast Tool Changes: Arm-type mechanism enables rapid tool exchanges
- High Reliability: Proven design ensures consistent performance with minimal maintenance
- Flexible Configuration: Accommodates various tool sizes and types
- Seamless Integration: Fully synchronized with CNC system for uninterrupted operation
5. Comprehensive Safety and Protection Systems
Operator safety and machine protection are integral to the design:
- Full Enclosure: Complete machine guarding contains chips and coolant
- Safety Interlocks: Prevents operation when doors are open
- Emergency Stop System: Multiple strategically located emergency stop buttons
- Overload Protection: Automatic shutdown in case of excessive cutting forces
- Coolant Management: Efficient chip removal and coolant filtration systems
6. User-Friendly CNC Control System
Advanced control interface simplifies operation and programming:
- Intuitive Interface: Modern CNC system with graphical programming capabilities
- Advanced Features: Includes tool path simulation, program editing, and diagnostic functions
- Network Connectivity: Supports DNC operation and remote monitoring
- Programming Flexibility: Compatible with standard G-code and conversational programming
- Training Resources: Comprehensive documentation and support for operator training
7. International Compliance and Certification
Designed for global deployment and regulatory compliance:
- CE Certification: Meets European safety and quality standards
- ISO Compliance: Manufactured according to international quality standards
- Multi-Voltage Options: Configurable for various international power requirements
- Export Ready: Complete documentation package for international shipping
- Global Support: Access to technical support and spare parts worldwide
Target Industries and Applications
Mold and Die Manufacturing
The MV1160 excels in precision mold production where accuracy and surface finish are critical:
- Injection Molds: High-precision machining of complex mold cavities and cores
- Die Casting Dies: Production of durable dies for metal casting applications
- Stamping Dies: Manufacturing of precision stamping tools for sheet metal forming
- Blow Molds: Creation of complex molds for plastic container production
- Prototype Molds: Rapid production of mold prototypes for design validation
Automotive Component Production
Ideal for the demanding requirements of automotive manufacturing:
- Engine Components: Machining of cylinder heads, blocks, and transmission housings
- Suspension Parts: Production of precision suspension components and brackets
- Brake System Components: Manufacturing of calipers, brackets, and mounting plates
- Drivetrain Elements: Machining of differential housings and gearbox components
- Custom Automotive Parts: Production of aftermarket and specialty automotive components
Aerospace and Defense Manufacturing
Meeting the stringent requirements of aerospace applications:
- Structural Components: Machining of aircraft structural elements and brackets
- Engine Parts: Production of turbine components and engine mounts
- Avionics Housings: Precision machining of electronic enclosure components
- Defense Equipment: Manufacturing of specialized components for defense applications
- Satellite Components: Production of precision parts for space applications
General Precision Machining
Versatile applications across multiple industrial sectors:
- Machine Tool Components: Production of precision parts for other manufacturing equipment
- Industrial Machinery: Machining of components for various industrial machines
- Medical Equipment: Manufacturing of precision medical device components
- Energy Sector: Production of components for power generation and distribution equipment
- Research and Development: Prototype development and small-batch production
Operational Advantages: Transforming Manufacturing Efficiency
Performance Comparison Analysis
| Performance Metric | Conventional Machines | MV1160 CNC Milling Center | Improvement |
|---|---|---|---|
| Positioning Accuracy | ±0.02-0.03mm | ±0.008mm | 60-75% improvement |
| Setup Time | 30-60 minutes | 10-20 minutes | 50-70% reduction |
| Tool Change Time | 10-15 seconds | 2-3 seconds | 75-80% faster |
| Surface Finish Quality | Ra 3.2-6.3μm | Ra 0.8-1.6μm | 50-75% improvement |
| Continuous Operation | 8-12 hours | 24+ hours unattended | 100-200% increase |
Economic Benefits Analysis
- Reduced Labor Costs: Automated operation reduces skilled operator requirements
- Increased Throughput: Higher cutting speeds and rapid tool changes boost productivity
- Improved Material Utilization: Precision machining minimizes material waste
- Reduced Scrap Rates: Consistent accuracy lowers rejection rates
- Extended Tool Life: Optimal cutting conditions prolong tool lifespan
- Quick ROI: Typical payback period of 18-24 months based on production volume
Quality and Precision Advantages
- Consistent Accuracy: Maintains tight tolerances across extended production runs
- Superior Surface Finish: High spindle speeds and precision motion deliver excellent surface quality
- Geometric Precision: Advanced control systems ensure complex geometries are accurately reproduced
- Repeatable Results: Automated processes eliminate operator-induced variations
- Comprehensive Documentation: Production data recording enables complete quality traceability
Implementation and Integration Considerations
Facility Requirements
| Requirement | Specification |
|---|---|
| Floor Space | Minimum 4×4 meters for machine and operator access |
| Power Supply | 380V, 3-phase, 50Hz with appropriate circuit protection |
| Compressed Air | 6-8 bar clean, dry air supply for tool changing functions |
| Coolant System | Integrated system with filtration and temperature control |
| Foundation | Level concrete floor capable of supporting 6800kg machine weight |
| Material Handling | Overhead crane or forklift for workpiece loading |
| Operator Training | Basic CNC programming and machining knowledge recommended |
Training and Support Services
- Comprehensive Training: Operator, programmer, and maintenance training programs
- Technical Documentation: Complete manuals covering operation, programming, and maintenance
- Remote Support: Online technical assistance and troubleshooting
- Preventive Maintenance: Scheduled maintenance plans to ensure optimal performance
- Spare Parts Availability: Critical components maintained in stock for quick delivery
- Application Engineering: Technical support for specific machining applications
Maintenance and Service Protocols
Preventive Maintenance Schedule
- Daily Checks: Lubrication levels, coolant condition, general inspection
- Weekly Maintenance: Way cover cleaning, chip removal system inspection, safety checks
- Monthly Service: Complete lubrication system check, alignment verification, filter replacement
- Quarterly Maintenance: Comprehensive inspection of mechanical and electrical components
- Annual Overhaul: Complete machine inspection, recalibration, and component replacement
Service Support Features
- Predictive Monitoring: Advanced diagnostics alert to potential issues before failure
- Remote Diagnostics: Technical support can access machine data for troubleshooting
- Global Service Network: Trained technicians available worldwide
- Spare Parts Inventory: Critical components maintained for expedited shipment
- Software Updates: Regular updates to CNC software for enhanced functionality
Frequently Asked Questions (FAQ)
Q: What materials can the MV1160 effectively machine?
A: The MV1160 is designed to machine a wide range of materials including steel, stainless steel, cast iron, aluminum, brass, and various engineering plastics. The 11kW spindle motor and rigid construction provide sufficient power and stability for machining hardened steels up to 45 HRC.
Q: What is the maximum workpiece size the machine can accommodate?
A: The working table measures 1200×620mm with a maximum load capacity of 850kg. The X-axis travel of 1100mm, Y-axis of 600mm, and Z-axis of 600mm provide substantial working envelope for most industrial components.
Q: How accurate is the MV1160 compared to similar machines?
A: The MV1160 offers positioning accuracy of ±0.008mm and repeatability of ±0.005mm, which exceeds industry standards for machines in this class. The reinforced Meehanite casting structure and high-precision linear guideways contribute to this exceptional accuracy.
Q: What CNC control system does the machine use?
A: The machine is equipped with a user-friendly CNC system that supports standard G-code programming, conversational programming, and includes advanced features such as tool path simulation, program editing, and diagnostic functions. Specific control brands may vary based on configuration.
Q: Can the machine operate unattended for extended periods?
A: Yes, with its automatic tool changer, efficient chip removal system, and stable construction, the MV1160 is designed for unattended operation. Many users successfully run overnight or weekend production cycles with proper setup and monitoring systems.
Q: What is the typical delivery and installation timeline?
A: Standard delivery is 60-90 days after order confirmation, with installation and commissioning typically requiring 3-5 days. Comprehensive operator training is provided during installation to ensure proper machine operation and maintenance.
Q: Are customization options available for specific applications?
A: Yes, the manufacturer offers various customization options including different spindle speeds (10000/12000rpm), enhanced coolant systems, specialized workholding solutions, and additional automation integration such as pallet changers or robotic loading systems.
Q: What safety features are included with the machine?
A: Safety features include full machine enclosure with interlocked doors, emergency stop buttons at multiple locations, overload protection systems, coolant and chip containment, and comprehensive electrical safety systems compliant with international standards.
