Project Overview
Why a Dedicated Spline Shaft Milling Machine Beats “General-Purpose” Milling
If your shop lives on transmission shafts, gearbox input/output shafts, pump drives, or agricultural PTO shafts, you already know the pain:
climb-milling splines on a universal mill works—but setup is slow, repeatability depends on fixtures, and surface finish/scrap rates suffer as volumes grow.

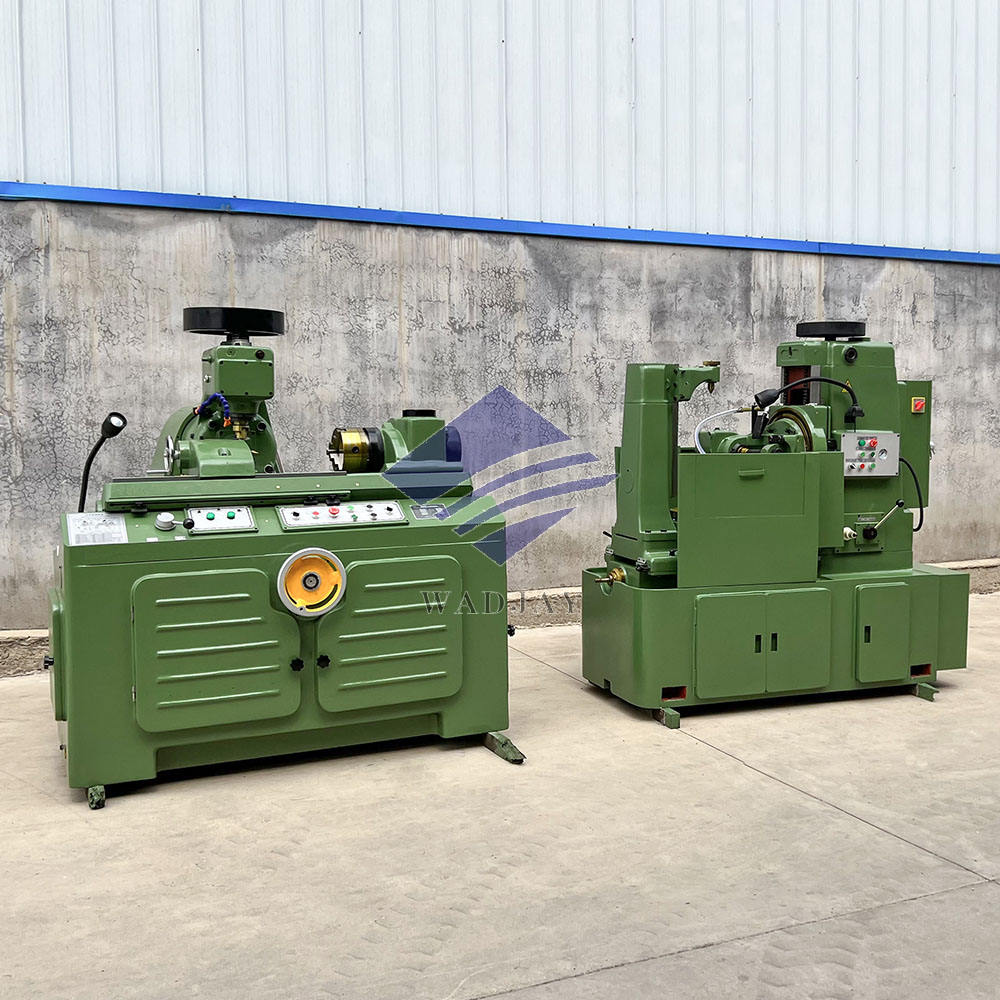

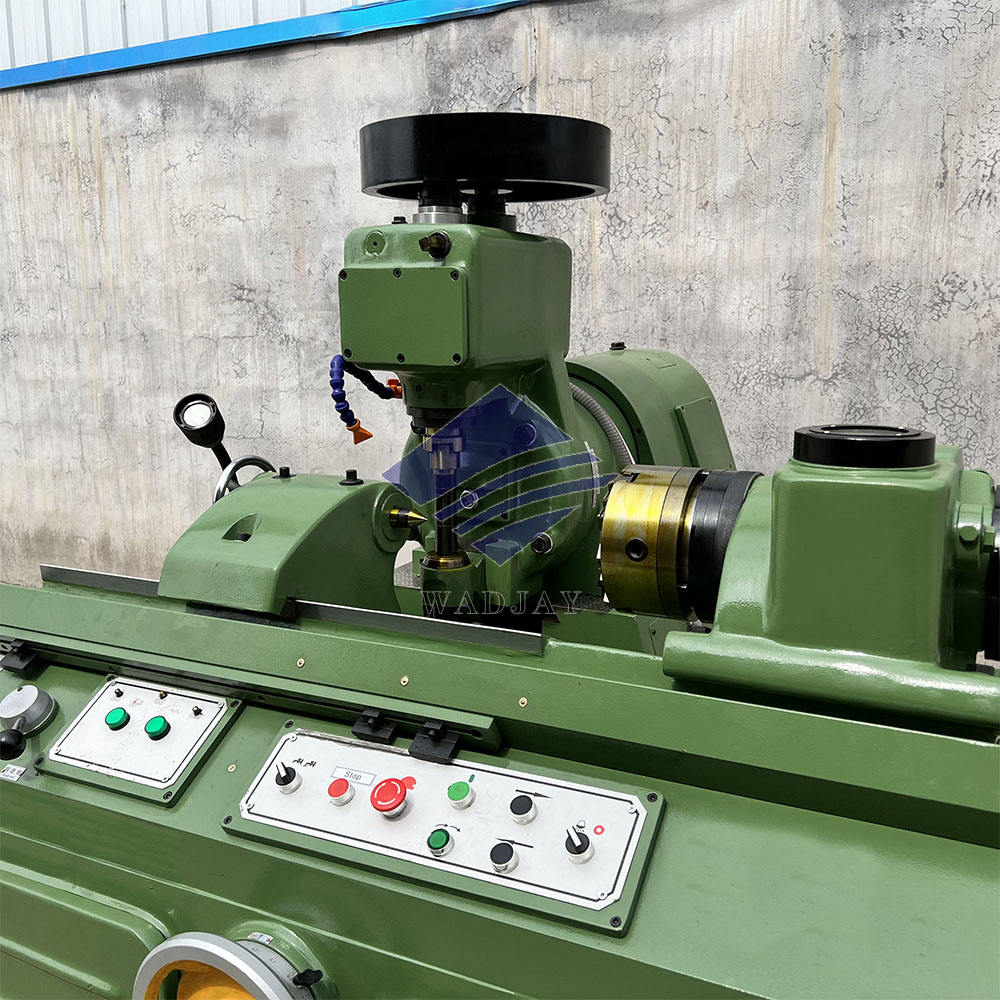

The Y631K Horizontal Spline Shaft Milling Machine exists for exactly this job: a rigid, purpose-built horizontal spline shaft milling machine that specializes in external straight splines, involute splines, and serrated shafts—with a clear working focus on workpieces up to 1,000 mm in length and modules up to M6. It’s not trying to be a CNC Swiss or a machining center; it’s built to be stable under cut, simple to maintain, and cost-effective per piece, whether you’re doing batch production or repair/small-order customization.
Technical Specifications (What the Y631K Actually Gives You)
| Parameter | Unit | Y631K Standard |
|---|---|---|
| Model | — | Y631K |
| Max. Workpiece Diameter | mm | 120 |
| Max. Workpiece Length | mm | 1,000 |
| Max. Spline Module (M) | mm | 6 |
| Max. Spline Length (cutting length) | mm | 800 |
| Spindle Speed Range | rpm | 125 – 500 (4-Speed mechanical) |
| Main Motor Power | kW | 3 |
| Worktable Longitudinal Travel | mm | 1,000 |
| Machining Accuracy Grade | — | GB/T 8 |
| Net Machine Weight | kg | ≈2,000 |
| Power Supply | — | 3 Phase 380V 50Hz (customizable) |
| Overall Dimensions (L×W×H) | mm | 1,500 × 900 × 1,600 |
How the Y631K Works (Process Flow, Plain English)
- Shaft supported between centers / fixture → aligned longitudinally along the horizontal axis.
- Horizontal cutter spindle carries the formed spline milling cutter sized for your module/tooth form.
- Worktable longitudinal feed indexes the shaft past the cutter; division/positioning methods produce the required number of spline teeth.
- 4-speed spindle + mechanical feed lets you pick the right cutting regime for material (steel / alloy steel / induction-hardened-ready blanks, etc.) and tooth size.
- Result: repeatable flank geometry, consistent pitch spacing, and a machined surface finish that’s hard to beat on a generic mill without expensive fixtures.
Key Features That Matter on the Floor
1) Specialized Spline Performance (Not a Compromise)
- Engineered specifically for external spline forms: straight-sided, involute, and serrated profiles.
- Because the kinematics and support structure are “spline-first,” you get better flank consistency and less operator fiddling than adapting a general-purpose horizontal mill.
2) Rigid Cast Iron Bed = Stability Under Cut
- Heavy cast iron base + precision guideways → vibration control.
- That stability is why the Y631K can hold its character over long workpieces (up to ~1 m) instead of chasing alignment every other batch.
3) Mechanical Feed System: Simple, Reliable, Repairable
- Mechanical drive trains are easy to troubleshoot and keep running in real shops.
- Fewer black-box electronics = higher uptime in environments where “it just runs” matters more than bells and whistles.
4) Operator-Friendly & Low Learning Curve
- Centralized controls, straightforward speed/feed selection, and a layout designed around shaft handling.
- New operators can be productive quickly; experienced hands get consistent output with minimal drama.
5) Low Total Cost of Ownership (TCO)
- Lower purchase price vs. CNC spline solutions
- Lower maintenance complexity
- Standardizable cutters & fixturing
- CE/ISO export readiness + customizable voltage for overseas installs
What Spline Types / Parts Fit the Y631K?
| Part Type | Why Y631K Is a Fit |
|---|---|
| Transmission / gearbox shafts | Repeated external spline forms, batch-friendly |
| Pump / motor shaft splines | M ≤6 range covers most small/mid industrial drivelines |
| Agricultural PTO / machinery splines | Long shafts (≤~1 m) with robust stock removal |
| Serrated / straight-sided shafts | Stable feed + rigid setup improves flank consistency |
| Repair & rework jobs | You can index/cut without rebuilding an entire CNC workflow |
Who Buys the Y631K (Buyer Personas)
- Gearbox / transmission component workshops (batch shafts, lower unit cost)
- Auto parts manufacturers & rebuilders (OEM-run or aftermarket)
- General machinery plants (pumps, compressors, conveyors, reducers)
- Agricultural equipment makers / repair depots
- Tool rooms & job shops that want one reliable “spline guy” instead of tying up VMCs
FAQ (Rich Snippet–Friendly)
Q: What’s the difference between this and a CNC spline hobber / shaper?
A: The Y631K is a dedicated mechanical horizontal spline milling machine—lower upfront cost, easier maintenance, great for M ≤6 and ≤1 m shafts. CNC hobbers/shapers add flexibility & higher precision ceilings, but also add programming, electronics care, and CapEx. Pick Y631K when your volumes & forms are consistent and TCO matters.
Q: Can it cut involute splines or only straight-sided?
A: Page intent explicitly supports straight splines, involute splines, and serrated shafts, with capability shaped by cutter selection and setup.
Q: What workpiece sizes fit?
A: Up to Ø120 mm diameter, 1,000 mm length, with typical spline cutting length around 800 mm.
Q: Do I need special cutters?
A: Yes—you’ll select formed/disk-type spline milling cutters matched to module & tooth form. That’s standard shop practice; we can advise cutter specs from your drawing.
Q: Is it CE certifiable for Europe/North America exports?
A: Page states CE / ISO Certified, factory direct, with customizable voltage for international sites.
Q: How do I confirm my shaft is suitable before buying?
A: Send the shaft drawing (cross-section + spline callout: M, Z, pressure angle if involute, major/minor, length). We’ll confirm fit within Y631K limits and propose cutter plan + any fixture notes.
