Project Overview
Wadjay automatic multifunctional pipe clamp making machine with PLC control produces U clamps, O clamps & Omega brackets from stainless/galvanized steel. 2.5-ton heavy bed, 100% automatic. Get quote.CE/ISO certification

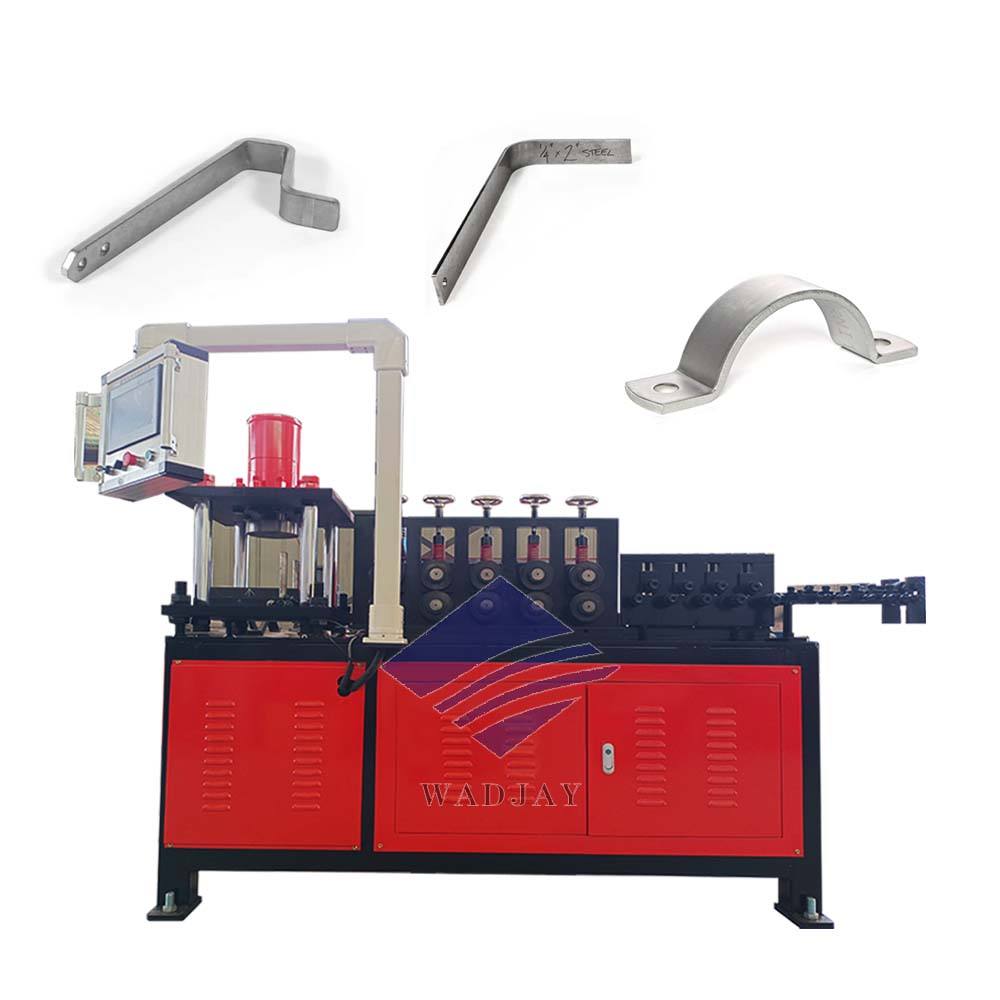

Automatic Multifunctional Pipe Clamp Making Machine — One Platform, Every Clamp Profile
Why Choose an Automatic Multifunctional Pipe Clamp Making Machine?
An automatic multifunctional pipe clamp making machine is the definitive upgrade for metal clamp manufacturers who are tired of running separate machines for every clamp variant. Wadjay’s PLC-controlled pipe clamp machine transforms raw steel coils or stainless steel strips into finished U clamps, O clamps, hose clamps, and Ω-shaped brackets in a single continuous cycle — integrating servo feeding, leveling, multi-station piercing, bending, and hydraulic cutting into one 2,500 kg heavy-duty platform.
Priced from $7,000, this machine is built for suppliers in the automobile, plumbing, and construction industries where dimensional repeatability, scrap reduction, and labor savings decide margins.
Key Technical Specifications
| Parameter | Wadjay Pipe Clamp Making Machine |
|---|---|
| Model | PLC Series |
| Automation Grade | 100% Fully Automatic |
| Control System | Premium Industrial PLC + Touch Screen |
| Machine Weight | 2,500 kg (2.5 Tons) heavy bed |
| Applicable Materials | Stainless Steel, Galvanized Steel, Mild Steel, Carbon Steel |
| Processing Method | Metal Wire Bending / Sheet Strip Stamping & Forming |
| Extra Processing | Piercing & Punching Module Included |
| Cutting Method | High-Pressure Hydraulic Cutting (burr-free) |
| Core Components | Motor, Gearbox, Hydraulic Pump, Engine, Pressure Vessel, PLC |
| Warranty | 1-Year Global Warranty + Lifelong Technical Support |
How the Multi-Functional Forming Cycle Works
The Wadjay multifunctional pipe clamp making machine executes a synchronized 5-stage workflow:
- High-Precision Strip Feeding — Synchronized servo-driven rollers feed metal bands or wires smoothly without slippage or surface scratching
- Dual-Line Leveling — Multi-roller straighteners eliminate strip curvature, ensuring flat feed stock

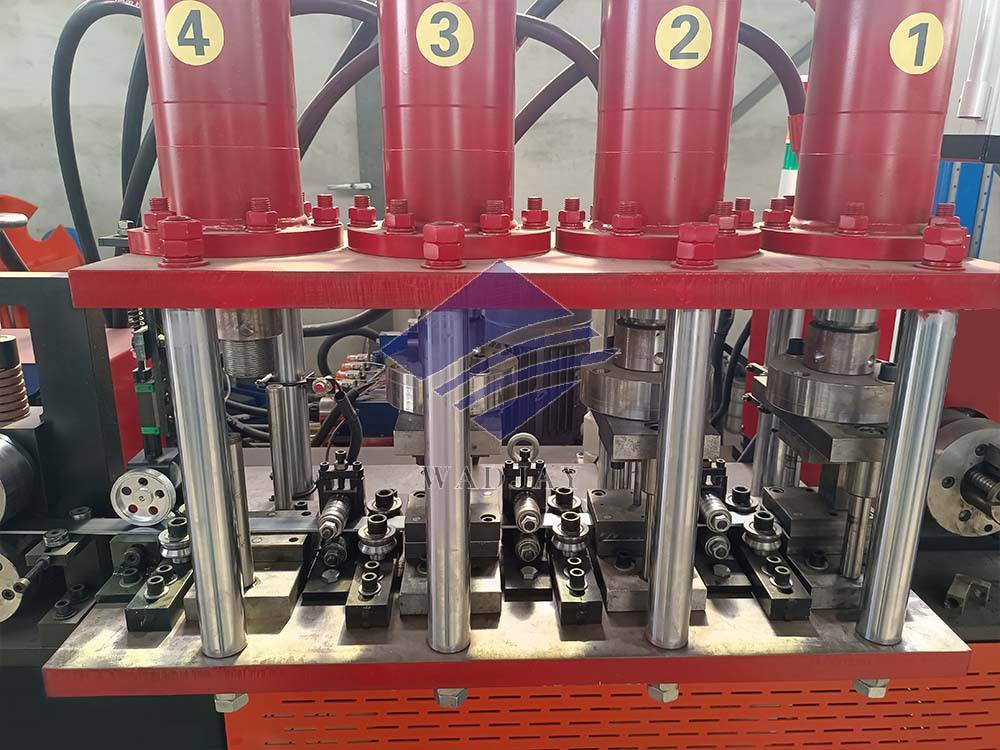

- Multi-Station Bending & Piercing — Continuous punching heads and bending dies execute hole piercing, forming, and rib-stiffening concurrently
- Smart Digital PLC Platform — Touch-screen interface for fast production volume preset, fault diagnostics, and micro-adjustments
- High-Pressure Hydraulic Cutting — Precise dynamic cutting post-forming delivers burr-free, uniform end sections ready for packaging
The progressive bending dies allow fast tooling changeover, enabling the same platform to produce multiple configurations of U clamps, O clamps, and Omega brackets — eliminating the need to invest in three separate machines.
Application Industries & Clamp Types
The automatic pipe clamp making machine serves a wide spectrum of industries:
- 🚗 Automotive — hose clamps, fuel line clamps, exhaust U-bolts
- 🏠 Plumbing & HVAC — pipe straps, saddle clamps, conduit clamps
- 🏗️ Construction — strut channel clips, 1-5/8″ rigid steel conduit clamps
- ⚡ Electrical — cable cleats, wire harness clamps
- 🏭 General Manufacturing — custom brackets, Ω-shaped mounting hardware
Compatible with stainless steel, galvanized steel, mild steel, and carbon steel strips, the machine adapts to virtually any clamp specification your customers require.
💪 Why Wadjay’s Pipe Clamp Machine Outperforms
- True multi-functionality — U clamp, O clamp, and Ω bracket on one platform via quick-change progressive dies
- Zero-vibration heavy bed — 2.5-ton stress-relieved steel frame provides absolute tracking stability
- 100% automatic operation — from decoiling to finished clamp, no manual intervention required
- Industrial-grade PLC — intuitive touch screen with production preset, fault diagnostics, and micro-adjustments
- Integrated piercing & punching — hole piercing, forming, and rib-stiffening executed concurrently
- Burr-free hydraulic cutting — high-pressure dynamic cutting delivers uniform, packaging-ready end sections
- CE-compliant components — high-rigidity bearings, gears, and pumps cut maintenance downtime by half
- Global warranty — 1-year factory warranty with lifelong technical support
- Competitive pricing — starting from USD 7,000, direct from Wadjay Machinery Export Co., Ltd.
Frequently Asked Questions
Q1: Can this machine really produce U clamps, O clamps, and Ω brackets on the same platform?
A: Yes. The progressive bending dies allow fast tooling changeover, so a single multifunctional pipe clamp making machine can switch between U clamps, O clamps, and Omega brackets by swapping or adjusting the die set. This eliminates the need to purchase three separate machines.
Q2: What materials can be processed?
A: The machine handles stainless steel, galvanized steel, mild steel, and carbon steel in the form of metal wire or sheet strip. Material thickness and width specifications can be customized to your product drawings.
Q3: Is the machine truly 100% automatic?
A: Yes. From servo-driven feeding and dual-line leveling through multi-station piercing, bending, PLC control, and hydraulic cutting — the entire cycle runs automatically. The operator only sets production volume and parameters via the touch screen.
Q4: What is the lead time and warranty?
A: Standard lead time is around 50 business days for 1 unit. The machine comes with a 1-year global warranty plus lifelong technical support. Machinery test reports and video outgoing-inspection are provided before shipment.
Q5: Can the machine be customized for my local voltage and clamp drawings?
A: Absolutely. Wadjay provides full customization — including logo, packaging, graphic design, voltage (e.g., 380V/50Hz/3-phase or as required), and die tooling matched to your specific clamp profile drawings.
