Project Overview

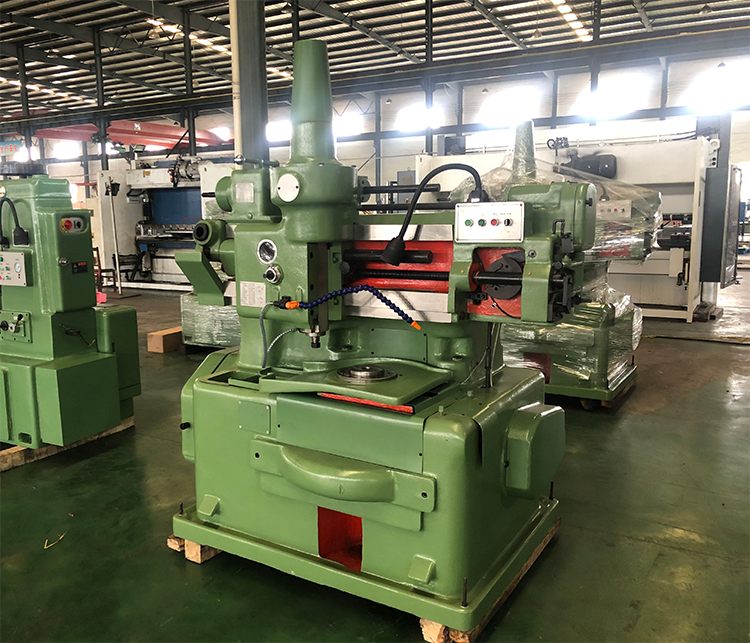

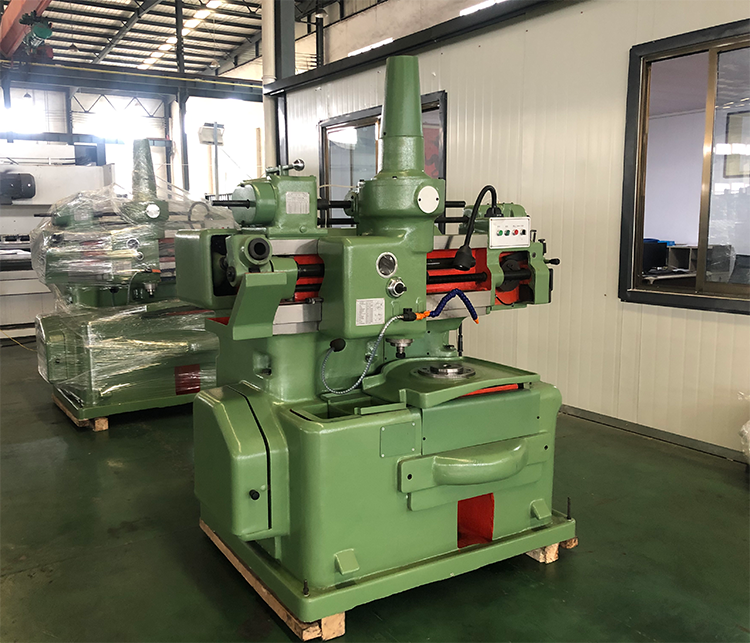

Y54 mechanical gear shaping machine cuts internal/external spur gears up to 260mm diameter with GB/T 7 accuracy. 4-speed ram (83-225 strokes/min), 2.2kW motor, 1700kg robust construction. CE certified for automotive and machinery manufacturing.
Mechanical Gear Shaping Machine Y54: Precision Gear Manufacturing for Automotive and Industrial Applications
Reliable Mechanical Design for Consistent Gear Production
In the world of precision gear manufacturing, where accuracy and reliability are paramount, the Mechanical Gear Shaping Machine Y54 stands as a proven solution for producing high-quality internal and external spur gears, splines, and keyway components. This robust machine represents decades of mechanical engineering excellence, offering manufacturers a dependable, cost-effective solution for both prototype development and high-volume production runs. Unlike more complex CNC alternatives, the Y54’s purely mechanical design ensures exceptional reliability with minimal electronic components, making it particularly suitable for workshops and production facilities that prioritize uptime and ease of maintenance.
The gear shaping process is uniquely capable of producing internal gears—a challenging task for other gear cutting methods like hobbing. The Y54 excels in this application, making it indispensable for automotive transmission manufacturing, industrial machinery production, and precision equipment fabrication. With its automatic indexing mechanism and four-speed ram stroke system, this machine delivers consistent tooth spacing and profile accuracy that meets GB/T 7 standards, ensuring that every gear produced maintains the precise specifications required for smooth, efficient power transmission in demanding applications.
Technical Specifications: Engineered for Precision Performance
Comprehensive Machine Parameters
| Parameter | Unit | Y54 Specification |
|---|---|---|
| Max. External Gear Diameter | mm | 240 |
| Max. Internal Gear Diameter | mm | 260 |
| Max. Machining Module | mm | 6 |
| Max. Ram Stroke Length | mm | 125 |
| Ram Stroke Speed | strokes/min | 83 / 120 / 169 / 225 (4-Speed) |
| Main Motor Power | kW | 2.2 |
| Control System | — | Mechanical |
| Accuracy Grade | — | GB/T 7 |
| Tool Capacity | tools | 12 |
| Net Machine Weight | kg | 1700 |
| Power Supply | — | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 1100 × 900 × 2000 |
| Working Area | mm | 1100 × 900 × 2000 |
Performance Capabilities
- Gear Types: External spur gears, internal spur gears, splines, keyways, and special profiles
- Material Compatibility: Steel, cast iron, brass, aluminum, and various engineering materials
- Tooth Profile Accuracy: Consistent tooth form and spacing for smooth meshing
- Production Speed: Adjustable stroke speeds for optimal material removal rates
- Setup Flexibility: Quick changeover between different gear specifications
Key Features: Mechanical Reliability Meets Precision Engineering
1. Versatile Gear Machining Capabilities
The Y54’s design enables it to handle a wide range of gear manufacturing requirements:
- Internal Gear Production: Specialized capability for cutting internal gears—a challenging operation for other gear cutting methods
- External Gear Cutting: Efficient production of standard external spur gears with precise tooth profiles
- Spline and Keyway Machining: Capable of producing splines and keyways with consistent accuracy
- Complex Profiles: Handles non-standard gear profiles that require precise shaping operations
- Prototype to Production: Suitable for both low-volume prototype development and high-volume manufacturing
2. Proven Mechanical Reliability
The purely mechanical design offers distinct advantages in industrial environments:
- Minimal Electronics: Reduced failure points compared to electronic or CNC-controlled systems
- Decades of Service: Simple, robust construction ensures long operational lifespan with proper maintenance
- Easy Troubleshooting: Mechanical systems are generally easier to diagnose and repair
- Consistent Performance: Less susceptible to electronic interference or software issues
- Low Maintenance Requirements: Standard mechanical components are readily available and easy to service
3. Precision Indexing and Consistency
Accurate gear production depends on precise tooth spacing and profile consistency:
- Automatic Indexing: Mechanical indexing mechanism ensures accurate tooth spacing around the gear circumference
- GB/T 7 Accuracy: Meets Chinese national standard for gear accuracy, suitable for most industrial applications
- Repeatable Results: Consistent performance across production runs minimizes quality variations
- Profile Accuracy: Maintains precise tooth form geometry for optimal gear meshing characteristics
- Minimal Backlash: Precision mechanical components minimize play in the transmission system
4. Simple and Cost-Effective Operation
Designed for ease of use and operational efficiency:
- Intuitive Controls: Simple mechanical controls reduce operator training requirements
- Quick Setup: Straightforward workpiece mounting and tool setup procedures
- Minimal Programming: No complex CNC programming required for standard gear profiles
- Operator-Friendly: Designed for comfortable, efficient operation during extended production runs
- Reduced Training Time: Operators can become proficient with minimal specialized training
5. Low Total Cost of Ownership
Economic advantages throughout the machine’s lifecycle:
- Affordable Initial Investment: Lower purchase price compared to CNC gear cutting alternatives
- Reduced Maintenance Costs: Standard mechanical components are inexpensive and widely available
- Energy Efficient: 2.2kW main motor minimizes power consumption during operation
- Minimal Downtime: Reliable mechanical design reduces unexpected breakdowns and production interruptions
- Long Service Life: Properly maintained machines can operate for decades in production environments
6. Global Export Ready Configuration
Designed for international deployment and compliance:
- CE Certification: Meets European safety and quality standards for international export
- Customizable Power: Configurable for various international voltage and frequency requirements
- Comprehensive Documentation: Complete technical and operational manuals in multiple languages
- International Support: Access to technical assistance and spare parts globally
- Robust Packaging: Designed for safe international shipping and handling
Target Industries and Applications
Automotive Manufacturing
The Y54 is particularly valuable in automotive component production:
- Transmission Gears: Production of internal and external gears for manual and automatic transmissions
- Differential Gears: Manufacturing of ring gears and pinion gears for differential assemblies
- Steering Components: Production of steering rack gears and pinion gears
- Engine Timing Gears: Manufacturing of camshaft and crankshaft timing gears
- Accessory Drive Gears: Production of gears for alternators, water pumps, and other engine accessories
Industrial Machinery
Essential for various industrial equipment manufacturing:
- Gearbox Production: Manufacturing of gears for industrial gearboxes and speed reducers
- Power Transmission: Production of gears for conveyor systems, pumps, and compressors
- Machine Tool Components: Manufacturing of gears for lathes, mills, and other machine tools
- Agricultural Equipment: Production of gears for tractors, harvesters, and agricultural machinery
- Material Handling: Manufacturing of gears for cranes, hoists, and lifting equipment
Precision Equipment Manufacturing
Specialized applications requiring accurate gear components:
- Medical Equipment: Production of precision gears for medical devices and diagnostic equipment
- Aerospace Components: Manufacturing of gears for aircraft systems and ground support equipment
- Scientific Instruments: Production of gears for laboratory equipment and measurement devices
- Robotics and Automation: Manufacturing of gears for robotic joints and automated systems
- Optical Equipment: Production of gears for telescopes, microscopes, and camera systems
Repair and Maintenance Operations
Ideal for maintenance and repair facilities:
- Replacement Gear Production: Manufacturing of replacement gears for equipment repair
- Prototype Development: Creating prototype gears for design validation and testing
- Small Batch Production: Efficient production of limited quantities for specialized applications
- Educational Institutions: Training equipment for technical schools and vocational programs
- Tool and Die Shops: Supporting tooling production with custom gear components
Operational Advantages: Transforming Gear Manufacturing Efficiency
Performance Comparison Analysis
| Performance Metric | Alternative Methods | Y54 Gear Shaper | Advantage |
|---|---|---|---|
| Internal Gear Capability | Limited or impossible with hobbing | Excellent internal gear production | Unique capability |
| Setup Time | 1-2 hours for complex setups | 30-60 minutes for most operations | 50-70% faster |
| Maintenance Complexity | Requires specialized technicians | Standard mechanical maintenance | 60-80% simpler |
| Initial Investment | $50,000+ for CNC alternatives | $15,000-25,000 range | 50-70% lower cost |
| Operator Training | Weeks to months for CNC programming | Days to weeks for basic operation | 70-80% faster training |
| Energy Consumption | 5-10kW for comparable machines | 2.2kW main motor | 55-78% more efficient |
Economic Benefits Analysis
- Lower Capital Investment: Significantly more affordable than CNC gear cutting alternatives
- Reduced Operating Costs: Minimal electronic components lower maintenance and repair expenses
- Energy Efficiency: 2.2kW motor consumes less power than comparable gear production equipment
- Minimal Training Investment: Operators require less specialized training than CNC alternatives
- Long Service Life: Robust mechanical design ensures decades of productive service
- Quick ROI: Typical payback period of 12-18 months based on production volume
Quality and Precision Advantages
- Consistent Accuracy: Mechanical indexing ensures repeatable tooth spacing and profile geometry
- GB/T 7 Standard Compliance: Meets recognized accuracy standards for industrial gear applications
- Profile Consistency: Maintains precise tooth form across production batches
- Surface Finish Quality: Properly sharpened cutters produce excellent gear tooth surfaces
- Minimal Thermal Effects: Mechanical operation generates less heat than some alternative methods
Implementation and Operational Considerations
Facility Requirements
| Requirement | Specification |
|---|---|
| Floor Space | Minimum 2×2 meters for machine and operator access |
| Power Supply | 380V, 3-phase, 50Hz (configurable for other standards) |
| Foundation | Level concrete floor capable of supporting 1700kg machine weight |
| Material Handling | Overhead hoist or forklift for workpiece loading (up to appropriate weight) |
| Lighting | Adequate workshop lighting for precision setup and inspection |
| Compressed Air | Optional for chip removal systems (if equipped) |
| Operator Training | Basic machining knowledge recommended |
Tooling and Accessories
- Cutting Tools: Various gear shaping cutters for different module sizes and tooth profiles
- Workholding: Chucks, mandrels, and fixtures for securing workpieces during machining
- Measuring Equipment: Gear tooth calipers, micrometers, and inspection equipment
- Sharpening Equipment: Cutter sharpening fixtures to maintain cutting edge geometry
- Coolant System: Optional flood coolant system for improved tool life and surface finish
- Chip Management: Chip trays and removal systems for clean operation
Training and Support Services
- Comprehensive Training: Basic operation, setup, and maintenance training programs
- Technical Documentation: Complete manuals covering operation, maintenance, and troubleshooting
- Application Support: Guidance on optimal cutting parameters for different materials
- Preventive Maintenance: Scheduled maintenance procedures to ensure long-term reliability
- Spare Parts Availability: Critical components maintained in stock for quick delivery
- Technical Assistance: Access to experienced technicians for operational guidance
Maintenance and Service Protocols
Preventive Maintenance Schedule
- Daily Checks: Lubrication levels, coolant condition (if equipped), general inspection
- Weekly Maintenance: Cleaning of chip accumulation areas, inspection of mechanical components
- Monthly Service: Complete lubrication system check, alignment verification, belt tension inspection
- Quarterly Maintenance: Comprehensive inspection of gears, bearings, and mechanical linkages
- Annual Overhaul: Complete machine inspection, recalibration, and worn component replacement
Common Maintenance Tasks
- Lubrication System: Regular oil changes and filter replacement for the lubrication system
- Mechanical Adjustments: Periodic adjustment of gibs, slides, and mechanical clearances
- Cutting Tool Maintenance: Regular sharpening and inspection of gear shaping cutters
- Drive System: Inspection and adjustment of belts, gears, and mechanical drives
- Accuracy Verification: Periodic checking of indexing accuracy and gear quality
Frequently Asked Questions (FAQ)
Q: What types of gears can the Y54 machine produce?
A: The Y54 can produce external spur gears up to 240mm diameter, internal spur gears up to 260mm diameter, splines, keyways, and various special profiles. It’s particularly effective for internal gears, which are challenging to produce with other gear cutting methods.
Q: What is the maximum module size the machine can handle?
A: The Y54 can handle gears up to module 6, which corresponds to a relatively coarse tooth size suitable for many industrial applications. For finer pitch gears, appropriate cutting tools and adjustments are required.
Q: How does the mechanical gear shaper compare to CNC gear cutting machines?
A: The mechanical gear shaper offers superior reliability and lower maintenance costs due to its simpler design, while CNC machines provide greater flexibility for complex profiles and automated operation. The Y54 is ideal for applications where reliability and cost-effectiveness are prioritized over extreme flexibility.
Q: What materials can be machined on the Y54?
A: The machine can effectively cut various materials including steel, cast iron, brass, aluminum, and some engineering plastics. The cutting parameters (speed, feed, depth of cut) should be adjusted based on material hardness and properties.
Q: What accuracy standard does the machine meet?
A: The Y54 meets GB/T 7 accuracy standards, which is suitable for most industrial gear applications. For higher precision requirements, additional finishing operations or more precise machines may be necessary.
Q: How long does it take to set up for a new gear job?
A: Setup time varies based on complexity, but typical changeovers for similar gear types can be completed in 30-60 minutes. More significant changes (different module sizes or gear types) may require 1-2 hours.
Q: What maintenance is required for long-term reliability?
A: Regular lubrication, periodic adjustment of mechanical components, cutter maintenance, and alignment checks are essential. Following the recommended preventive maintenance schedule will ensure decades of reliable service.
Q: Can the machine be customized for specific applications?
A: Yes, various customization options are available including different power configurations, specialized workholding solutions, enhanced coolant systems, and integration with material handling equipment.
Q: What training is required for operators?
A: Operators should have basic machining knowledge. Comprehensive training covering machine operation, setup procedures, tooling selection, and basic maintenance is typically provided during installation and can be completed within a few days to a week.
Q: What is the typical delivery timeline?
A: Standard delivery is 30-60 days after order confirmation, with installation and commissioning typically requiring 2-3 days. Comprehensive operator training is provided during installation.
