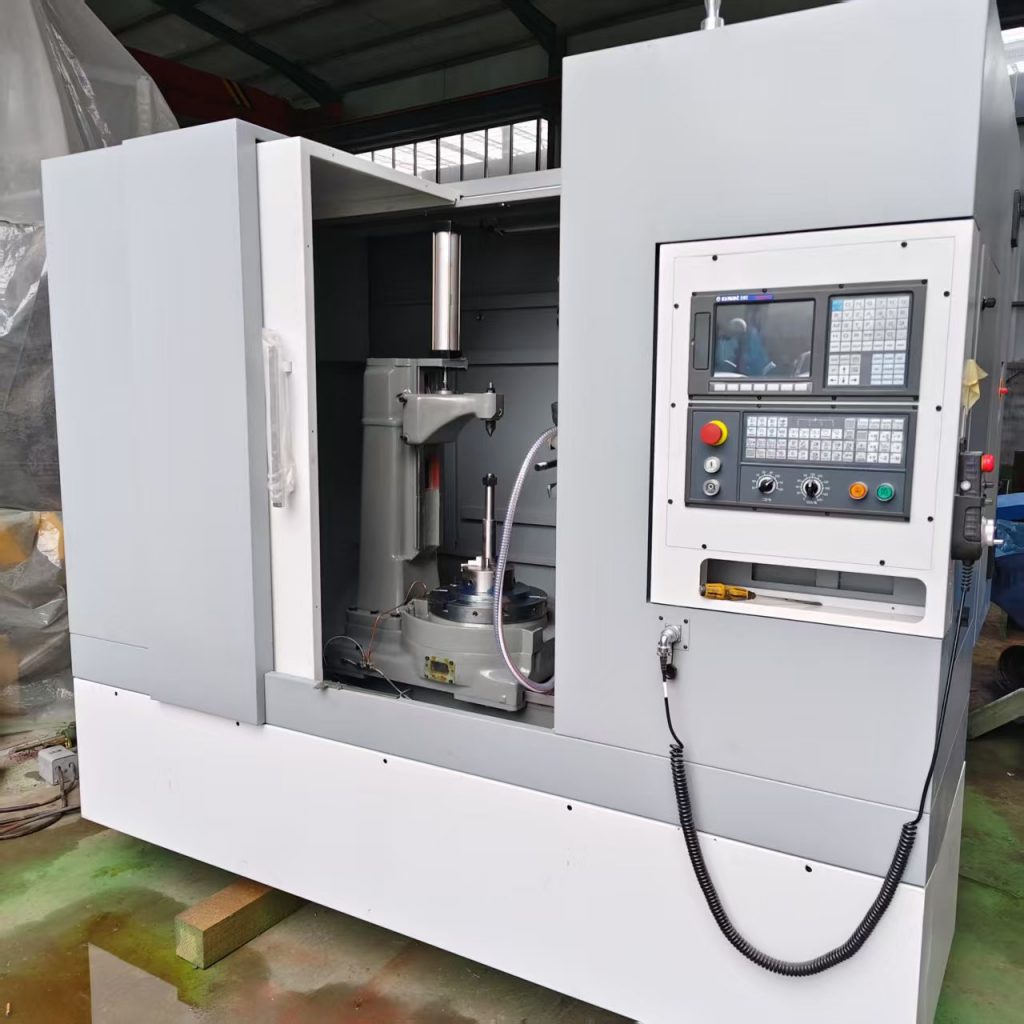

CNC high-speed gear hobbing machine Y3180 with 800mm max workpiece diameter, Module 10 capacity, 100-500 rpm stepless spindle, Siemens/Fanuc CNC control. GB/T 6 accuracy for automotive, wind energy & heavy machinery. CE certified, factory direct.

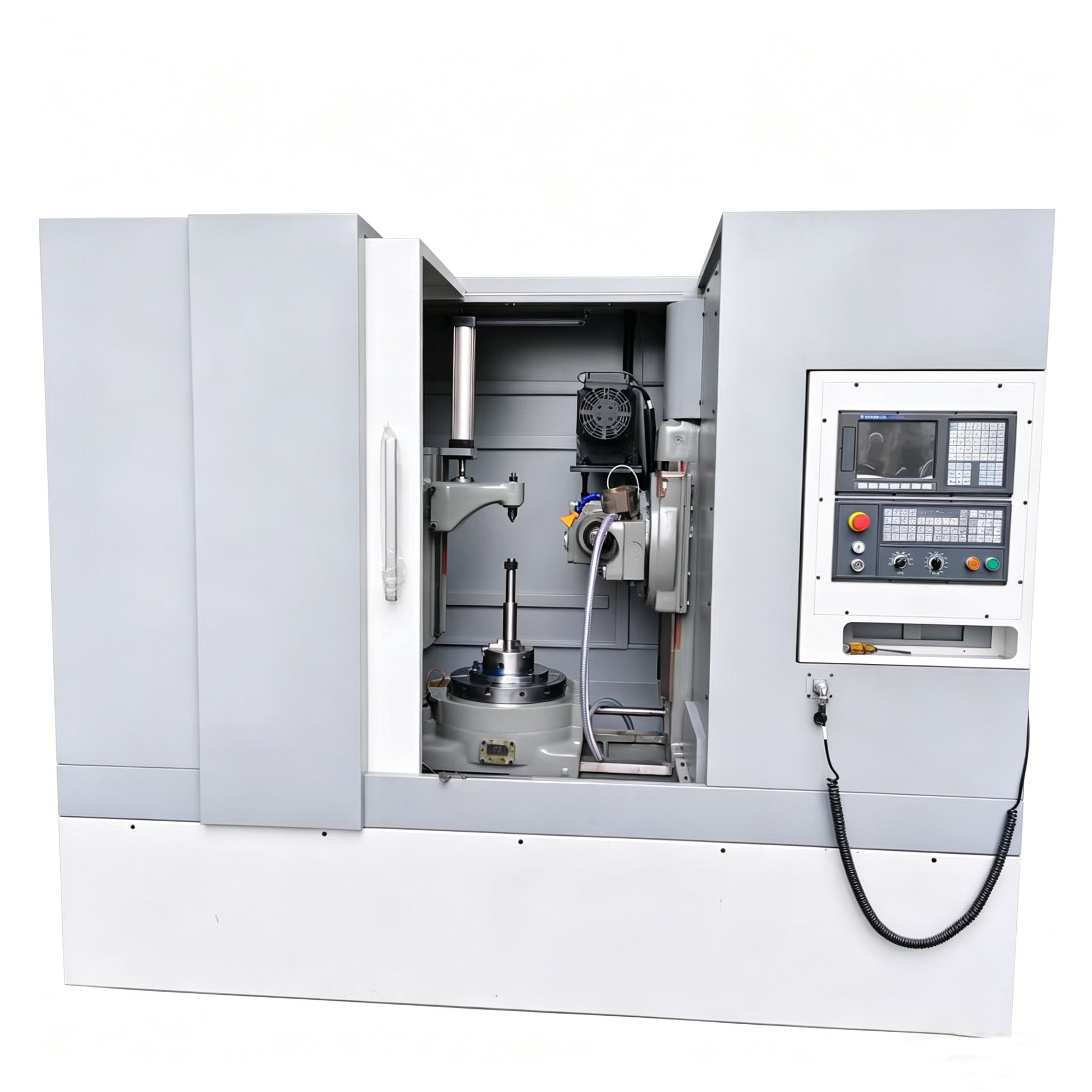

CNC High-Speed Gear Hobbing Machine Y3180: Precision Large Gear Manufacturing Solution

Advanced CNC Technology for High-Efficiency Gear Production

In the demanding world of modern gear manufacturing, where precision, speed, and reliability define competitive advantage, the CNC High-Speed Gear Hobbing Machine Y3180​ stands as a benchmark solution for producing large, high-quality gears. This next-generation CNC gear hobbing machine is engineered specifically for the high-efficiency manufacturing of external spur gears, helical gears, worm gears, and spline shafts—components critical to automotive transmissions, wind turbine gearboxes, mining equipment, and heavy machinery assemblies.

Traditional mechanical gear hobbing machines often struggle to maintain consistent accuracy under high-speed cutting conditions, leading to increased scrap rates and frequent manual adjustments. The Y3180 CNC overcomes these limitations through its ultra-rigid cast iron construction, advanced CNC control system (optional Siemens or Fanuc), and fully automated functions including automatic tool setting and adaptive feed control. The result is exceptional stability during high-speed cutting cycles, consistent tooth profile accuracy meeting GB/T 6 grade, and significantly boosted overall production efficiency compared to conventional models.

Technical Specifications: Engineered for Industrial-Grade Performance

Comprehensive Machine Parameters

Performance Capabilities

• Gear Types:​ Spur gears, helical gears, worm gears, spline shafts
• Material Compatibility:​ Steel, alloy steel, cast iron, stainless steel, and engineering materials
• Tooth Profile Accuracy:​ Consistent GB/T 6 grade for smooth meshing and quiet operation
• Surface Finish:​ Ra ≤ 1.6µm achievable with optimized cutting parameters
• Production Efficiency:​ High-speed cutting with minimal cycle times
• Automation Level:​ Fully automated CNC control reduces operator intervention

Key Features: Advanced Technology for Maximum Productivity

1. CNC Precision & Automation

The Y3180 CNC eliminates human error and reduces operator dependency through:

• Sub-Micron Positioning Accuracy:​ CNC control ensures precise hob positioning for consistent tooth spacing
• Automatic Tool Setting:​ Reduces setup time and eliminates manual measurement errors
• Adaptive Feed Control:​ Automatically adjusts cutting parameters based on material and tool conditions
• Programmable Cycles:​ Store multiple gear programs for quick changeover between different specifications
• Real-Time Monitoring:​ Display cutting parameters, tool wear status, and production counts
• Error Compensation:​ Automatic compensation for thermal expansion and mechanical wear
• Reduced Scrap:​ Consistent accuracy minimizes rejected parts and rework

2. Heavy-Duty Performance

Engineered to handle the most demanding applications:

• 800mm Max Workpiece Diameter:​ Accommodates large gears for heavy machinery and wind energy
• Module 10 Capacity:​ Handles coarse-pitch gears for high-load transmission systems
• 11kW Main Motor:​ Provides ample power for heavy material removal
• High-Torque Spindle:​ Maintains cutting force at low speeds for tough materials
• Stepless Speed Control:​ 100-500 rpm range optimized for different gear sizes and materials
• Rigid Cutting Action:​ Minimizes vibration for superior surface finish and extended tool life

3. Ultimate Structural Rigidity

The foundation of precision machining:

• Massive Reinforced Cast Iron Frame:​ High-density construction dampens vibration during heavy cuts
• Precision-Ground Guideways:​ Ensures smooth, accurate movement of all axes
• Thermal Stability:​ Cast iron construction resists thermal deformation during extended operation
• Vibration Damping:​ Optimized mass distribution absorbs cutting forces effectively
• Long-Term Accuracy:​ Maintains precision specifications through years of continuous use
• Stable Foundation:​ 6200kg net weight provides exceptional stability

4. Versatile Gear Processing

Single machine handles multiple gear types:

• Spur Gears:​ Standard external spur gears for general transmission applications
• Helical Gears:​ Precision helical gears for smoother, quieter operation
• Worm Gears:​ Accurate worm gear production for speed reduction systems
• Spline Shafts:​ Spline cutting for shaft connections and power transmission
• Special Profiles:​ Custom profiles supported through CNC programming
• Standard & Non-Standard:​ Accommodates both standard and special gear specifications

5. User-Friendly Interface

Designed for operator efficiency and reduced training requirements:

• Intuitive Digital Control Panel:​ Graphical interface simplifies programming
• Quick Parameter Entry:​ Fast setup of cutting parameters for different gears
• Tool Path Simulation:​ Visual preview of cutting process before machining
• Diagnostic Functions:​ Automatic fault detection and troubleshooting guidance
• Multi-Language Support:​ Interface available in multiple languages
• Reduced Training Time:​ Operators become proficient within days rather than weeks
• Production Data Logging:​ Track output, cycle times, and quality metrics

6. Global Export Ready

Comprehensive certification and customization for international markets:

• CE Certification:​ Meets European safety and quality standards
• ISO Compliance:​ Manufactured according to international quality management systems
• Customizable Voltage:​ Configurable for 380V, 400V, 415V, 440V, and other standards
• Control System Options:​ Siemens or Fanuc CNC available based on preference
• Complete Documentation:​ Operating manuals, parts lists, maintenance guides
• Export Packaging:​ Secure crating for international shipping protection
• Worldwide Support:​ Technical assistance and spare parts availability globally

Target Industries and Applications

Automotive Transmission Manufacturing

The Y3180 CNC is ideal for high-volume production of precision transmission components:

• Transmission Gears:​ Helical and spur gears for manual and automatic transmissions
• Differential Gears:​ Ring gears and pinion gears for differential assemblies
• Electric Vehicle Gears:​ Precision gears for EV powertrains and reduction systems
• Steering Components:​ Gears for electric power steering systems
• Engine Timing Gears:​ Camshaft and crankshaft timing gears
• Aftermarket Parts:​ Replacement gears for automotive repair

Wind Turbine Gearbox Production

Meeting the demanding requirements of renewable energy applications:

• Planetary Gears:​ Large-diameter gears for wind turbine gearboxes
• Ring Gears:​ Precision ring gears for yaw and pitch systems
• Helical Gears:​ High-accuracy gears for multi-stage gearboxes
• Spline Shafts:​ Power transmission components for turbine drivetrains
• Custom Gears:​ Specialized components for emerging turbine technologies
• High-Reliability Components:​ Designed for 20+ year service life

Mining and Heavy Machinery

Engineered for the toughest industrial environments:

• Excavator Gears:​ Swing drive and track drive gears
• Crusher Components:​ Heavy-duty gears for mineral processing equipment
• Conveyor Drives:​ Large gears for bulk material handling systems
• Dragline Gears:​ Massive components for surface mining operations
• Mill Drives:​ Gears for grinding mill applications
• Pump Drives:​ Precision gears for high-pressure pumping systems

Industrial Gearbox Manufacturing

Supporting diverse industrial applications:

• Speed Reducers:​ Gears for standard and custom gearbox designs
• Machine Tool Drives:​ Precision gears for lathes, mills, and machining centers
• Printing Press Gears:​ High-accuracy components for printing equipment
• Textile Machinery Gears:​ Specialized gears for textile manufacturing
• Packaging Equipment:​ Gears for automated packaging systems
• Material Handling:​ Components for conveyor and lifting equipment

Marine and Offshore Applications

Corrosion-resistant and high-reliability gear production:

• Propulsion System Gears:​ Marine transmission components
• Winch Drives:​ Heavy-duty gears for offshore winches
• Deck Machinery:​ Gears for anchor handling and mooring systems
• Thruster Gears:​ Components for dynamic positioning systems
• Offshore Platform Equipment:​ Specialized gears for oil and gas applications
• Shipbuilding Components:​ Precision gears for vessel construction

Operational Advantages: Transforming Gear Manufacturing Efficiency

Performance Comparison Analysis

Economic Benefits Analysis

• Capital Investment:​ Competitive pricing for a fully featured CNC gear hobbing machine
• Production Capacity:​ 30-50% higher output compared to traditional mechanical machines
• Labor Cost Reduction:​ Reduced operator skill requirements and fewer operators needed
• Material Savings:​ Lower scrap rates reduce material waste
• Tooling Cost Reduction:​ Extended tool life through optimized cutting parameters
• Energy Efficiency:​ Adaptive power management reduces operating costs
• Quick ROI:​ Typical payback period of 12-18 months based on production volume
• Resale Value:​ High-quality CNC equipment retains value well

Quality and Precision Advantages

• GB/T 6 Accuracy:​ Meets international standards for gear quality
• Consistent Tooth Profile:​ CNC control ensures identical geometry across production batches
• Surface Finish Excellence:​ Ra ≤ 1.6μm reduces need for secondary finishing operations
• Repeatable Results:​ Automated processes eliminate operator-induced variations
• Thermal Stability:​ Maintains accuracy during extended production runs
• Documentation Support:​ Production data recording for quality traceability
• Certification Ready:​ Components meet requirements for ISO and other quality certifications

Implementation and Operational Considerations

Facility Requirements

Tooling and Workholding Considerations

• Hob Cutters:​ Various module sizes and types for different gear specifications
• Workholding:​ Chucks, mandrels, and fixtures for securing workpieces
• Measuring Equipment:​ Gear tooth calipers, micrometers, and inspection equipment
• Coolant System:​ Flood coolant for improved tool life and surface finish
• Chip Management:​ Chip conveyors and removal systems for clean operation
• Safety Equipment:​ Machine guards, eye protection, and proper PPE

Training and Support Services

• Comprehensive Training:​ Machine operation, CNC programming, maintenance procedures
• Technical Documentation:​ Complete manuals covering all operational aspects
• Application Engineering:​ Support for process optimization and tool selection
• Preventive Maintenance:​ Scheduled maintenance procedures and checklists
• Spare Parts Inventory:​ Critical components maintained for quick delivery
• Remote Support:​ Online technical assistance for operational guidance
• Process Optimization:​ Continuous improvement support for production efficiency
• Safety Training:​ Proper machine operation and safety protocol instruction

Maintenance and Service Protocols

Preventive Maintenance Schedule

• Daily Checks:​ Lubrication levels, coolant condition, general inspection
• Weekly Maintenance:​ Guideway cleaning, chip removal system inspection
• Monthly Service:​ Complete lubrication system check, alignment verification
• Quarterly Maintenance:​ Comprehensive inspection of mechanical and electrical components
• Semi-Annual Service:​ Complete system calibration and performance verification
• Annual Overhaul:​ Complete machine inspection, component replacement as needed

Critical Maintenance Tasks

• Guideway Maintenance:​ Regular cleaning and lubrication of sliding surfaces
• Spindle Maintenance:​ Bearing inspection, lubrication, and thermal monitoring
• Hydraulic System:​ Fluid level checks, filter replacement, leak inspection
• Coolant System:​ Filter cleaning, concentration monitoring, tank cleaning
• Electrical System:​ Motor inspection, wiring integrity, CNC diagnostics
• Accuracy Verification:​ Periodic checking of machine geometry and gear quality
• Safety Systems:​ Regular testing of emergency stops and protective guards

Frequently Asked Questions (FAQ)

Q: What types of gears can the Y3180 CNC gear hobbing machine produce?

A: The machine can produce external spur gears, helical gears, worm gears, and spline shafts. It handles workpiece diameters up to 800mm and modules up to 10, making it suitable for a wide range of industrial applications.

Q: What is the maximum workpiece size the machine can accommodate?

A: The maximum workpiece diameter is 800mm, with a maximum length of 500mm. The hob center distance ranges from 120mm to 450mm, accommodating various gear sizes and configurations.

Q: What accuracy grade does the machine achieve?

A: The Y3180 CNC consistently achieves GB/T 6 accuracy grade, which is equivalent to international standards for precision gear manufacturing. This level of accuracy ensures smooth gear meshing, quiet operation, and long service life.

Q: What CNC control systems are available?

A: The machine is available with optional Siemens or Fanuc CNC control systems, both of which are industry-leading brands known for reliability, precision, and user-friendly interfaces.

Q: How does the CNC automation improve production efficiency?

A: The CNC system enables automatic tool setting, adaptive feed control, programmable cutting cycles, and real-time monitoring. This reduces setup time by 75-85%, increases cutting speed by 30-50%, and lowers scrap rates to below 1%.

Q: What industries typically use this gear hobbing machine?

A: The Y3180 CNC is widely used in automotive transmission manufacturing, wind turbine gearbox production, mining and heavy machinery, industrial gearbox manufacturing, and marine applications.

Q: What maintenance is required for optimal performance?

A: Regular maintenance includes daily lubrication checks, weekly cleaning, monthly system inspections, and quarterly comprehensive checks. Following the recommended preventive maintenance schedule ensures decades of reliable service.

Q: Can the machine be customized for specific applications?

A: Yes, the machine can be customized with different control systems, voltage configurations, workholding solutions, and automation integration such as robotic loading systems.

Q: What training is provided for operators?

A: Comprehensive training includes machine operation, CNC programming, setup procedures, maintenance, and safety protocols. Training typically requires 3-5 days of hands-on instruction.

Q: What is the typical delivery and installation timeline?

A: Standard delivery is 45-60 days after order confirmation. Installation and commissioning typically require 3-5 days, followed by operator training. Custom configurations may require additional time.

Ready to Transform Your Gear Manufacturing Capabilities?

The CNC High-Speed Gear Hobbing Machine Y3180​ represents a significant advancement in gear manufacturing technology—combining high-speed performance with precision engineering to deliver consistent, high-quality gears for demanding industrial applications. Whether you’re producing automotive transmission components, wind turbine gearbox parts, or heavy machinery gears, this machine offers the productivity, accuracy, and reliability needed to compete in today’s global market.
