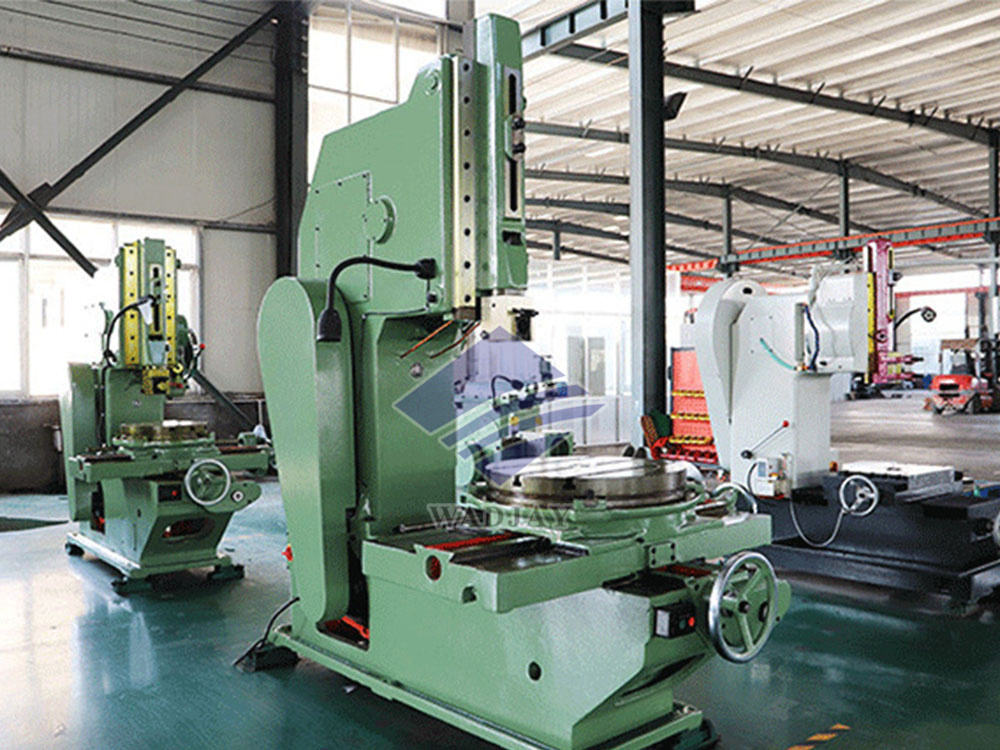

B5032 Vertical Slotting Machine
Model: B5032
Quick Specifications
| Working Area: | 2600 × 1800 × 2900mm |
| Spindle Speed: | 10 - 100mm/min |
| Accuracy: | 0.01 |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | B5032 Standard Value |
|---|---|---|
| Max. Slotting Stroke | mm | 320 |
| Max. Workpiece Diameter | mm | 800 |
| Max. Workpiece Height | mm | 500 |
| Main Motor Power | kW | 7.5 |
| Ram Feed Speed Range | mm/min | 10 – 100 |
| Table Rotation Range | ° | 360° |
| Table Longitudinal Travel | mm | 400 |
| Net Weight | kg | 3800 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 2600 × 1800 × 2900 |
Features
✅ Heavy-Duty Rigid Construction
Reinforced cast iron bed and hardened guideways ensure zero deflection during heavy cutting, delivering superior surface finish and long-term dimensional stability for key parts.
✅ High-Torque Reciprocating Ram
7.5kW main motor delivers strong cutting power for keyway, spline, and groove machining on carbon steel, alloy steel, and cast iron workpieces.
✅ Versatile Machining Capabilities
Suitable for keyways, splines, T-slots, and custom inner profiles, covering 95% of common slotting needs in general machining and automotive part manufacturing.
✅ Precision Manual Feeding
Smooth handwheel controls for precise ram feed and table movement, reducing operator fatigue and ensuring accurate positioning for complex parts.
✅ Large Rotary Worktable
360° rotating table with longitudinal travel supports multi-angle machining and clamping of large workpieces.
✅ Centralized Lubrication System
Automatic centralized lubrication for key moving parts reduces wear and tear, extending machine service life and ensuring stable operation.
✅ Global Export Ready
CE-certified, with customizable voltage and complete export documentation, suitable for international shipping and global customer projects.
