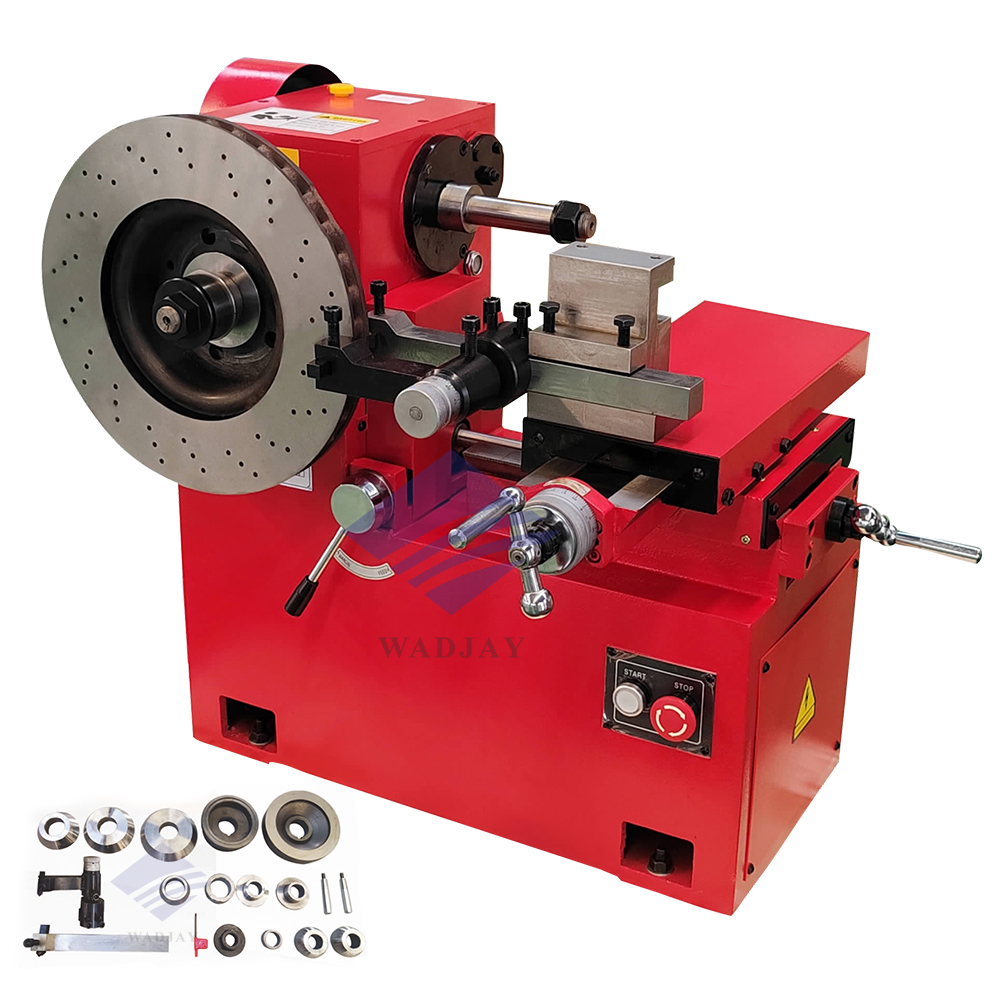

C9335A Brake Lathe for Car Truck Brake Disc and Drum Resurfacing
Model: C9335A
Quick Specifications
| Working Area: | 800MM*660MM*840MM |
| Spindle Speed: | 1 - 1250 r.p.m |
| Accuracy: | 0.01 |
| Tool Capacity: | 6 |
Product Video
Description
Disc Repair Lathe | Automotive Brake Hub Plate Repair Tool | Portable Design | CE Certified | High Precision
The Disc Repair Lathe is a professional-grade automotive repair tool designed for precision resurfacing of brake drums, discs, and hub plates. Operating on a standard 110V power supply, this portable machine features a robust motor and precision cutting tools to restore braking surfaces to OEM specifications with tolerances within ±0.005mm.
With dimensions of 80x66x84cm and weighing approximately 217kg, it is ideal for auto repair shops, vehicle maintenance facilities, and DIY enthusiasts. The machine includes user-friendly controls, automatic feed mechanisms, and safety features like overload protection.Disc Repair Lathe.
ISO certified for safety and quality, it reduces repair costs by up to 60% by extending the life of brake components. Its portable design allows for easy movement and storage in any workshop. Suitable for cars, trucks, and commercial vehicles, this lathe offers high efficiency and low energy consumption.Disc Repair Lathe.
Customization options include tooling adaptations and packaging. Disc Repair Lathe.Backed by a 1-year warranty, it is a reliable and cost-effective solution for all brake repair needs.contact us.
Technical Specifications
Parameter | Specification / Value | Unit |
|---|---|---|
Machining Diameter Range | φ180 – φ350 | mm |
Max. Tool Travel | 100 | mm |
Workpiece Spindle Speed | 90 | r/min |
Motor Power | 0.75 | kW |
Machine Dimensions (L×W×H) | 695 × 565 × 635 | mm |
Packing Dimensions (L×W×H) | 750 × 710 × 730 | mm |
Net Weight / Gross Weight | 200 / 260 | kg |
Features
- Power Supply: 110V AC
- Motor Power: 1100W
- Processing Thickness: 0.3-0.8mm
- Precision: ±0.005mm tolerance
- Dimensions: 80cm x 66cm x 84cm (L x W x H)
- Weight: 217kg
- Control System: Manual with automatic feed options
- Safety Features: Overload protection, emergency stop
- Certification: CE Certified (assumed)
- Compatibility: Cars, trucks, light commercial vehicles
- Warranty: 1 year (assumed)
