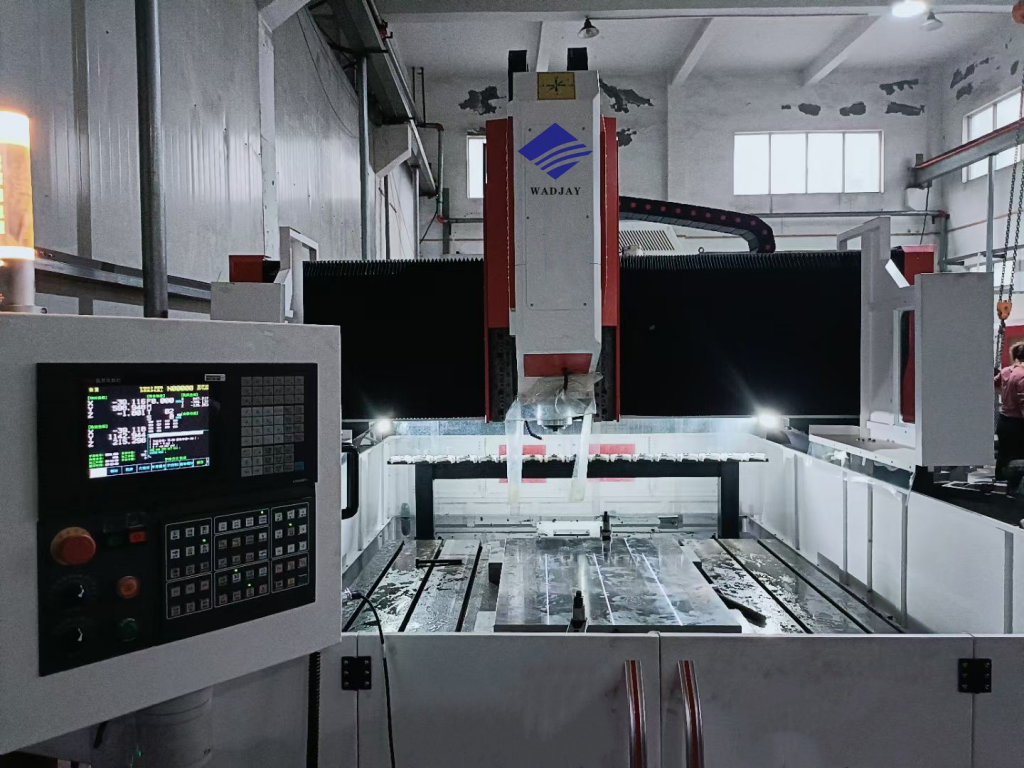

GMC1613 CNC Gantry Machining Center

Model: GMC1613

Quick Specifications

Working Area:	4200 × 3100 × 3200mm
Spindle Speed:	50 - 6000r/min
Accuracy:	±0.02/1000
Tool Capacity:	24

Product Video

Watch on YouTube for best quality

Description

The GMC1613 is a heavy-duty, high-precision 3-axis CNC gantry machining center, engineered for multi-process machining of large workpieces like flanges, molds, structural parts, and pressure vessel components. Built with a rigid cast iron frame and linear guideways, it delivers stable performance for drilling, tapping, milling, and boring operations.

Equipped with an automatic tool changer (ATC), advanced CNC control system, and fully enclosed splash guard, it is designed for both high-volume production and precision prototype work, widely used in mold manufacturing, heavy machinery, and petrochemical industries.CE/ISO Certified, Factory Direct.

Technical Specifications

Parameter	Unit	GMC1613 Standard Specification
Worktable Size (L×W)	mm	1600 × 1300
Max. Travel (X/Y/Z)	mm	1600 / 1300 / 800
Spindle Taper	–	BT50
Spindle Speed Range	r/min	50 – 6000
Spindle Motor Power	kW	11
Tool Magazine Capacity	–	24 Tools
Control System	–	Siemens/Fanuc
Positioning Accuracy	mm	±0.02/1000
Net Machine Weight	kg	13500
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Machine Dimensions (L×W×H)	mm	4200 × 3100 × 3200

Features

✅ Multi-Process Machining in One Setup

With drilling, tapping, milling, and boring capabilities, it eliminates multiple setups and secondary operations, significantly improving efficiency.

✅ Automatic Tool Change (ATC)

24-tool magazine enables quick tool changes, supporting continuous production of complex parts with different machining requirements.

✅ High-Rigidity Structure

Reinforced cast iron bed and heavy-duty gantry frame ensure zero deflection during heavy cutting, delivering excellent surface finish and long-term stability.

✅ Precision CNC Control

High-precision linear guides and ball screws paired with Siemens/Fanuc system ensure high accuracy and repeatability for mold and precision part machining.

✅ User-Friendly Operation & Maintenance

Fully enclosed splash guard, centralized lubrication, and chip removal system reduce maintenance work and ensure a safe, clean workshop environment.

✅ Versatile Industrial Applications

Ideal for mold manufacturing, large structural parts, flanges, and pressure vessel components, suitable for carbon steel, alloy steel, and stainless steel.

✅ Global Export Ready

Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping and overseas projects.
