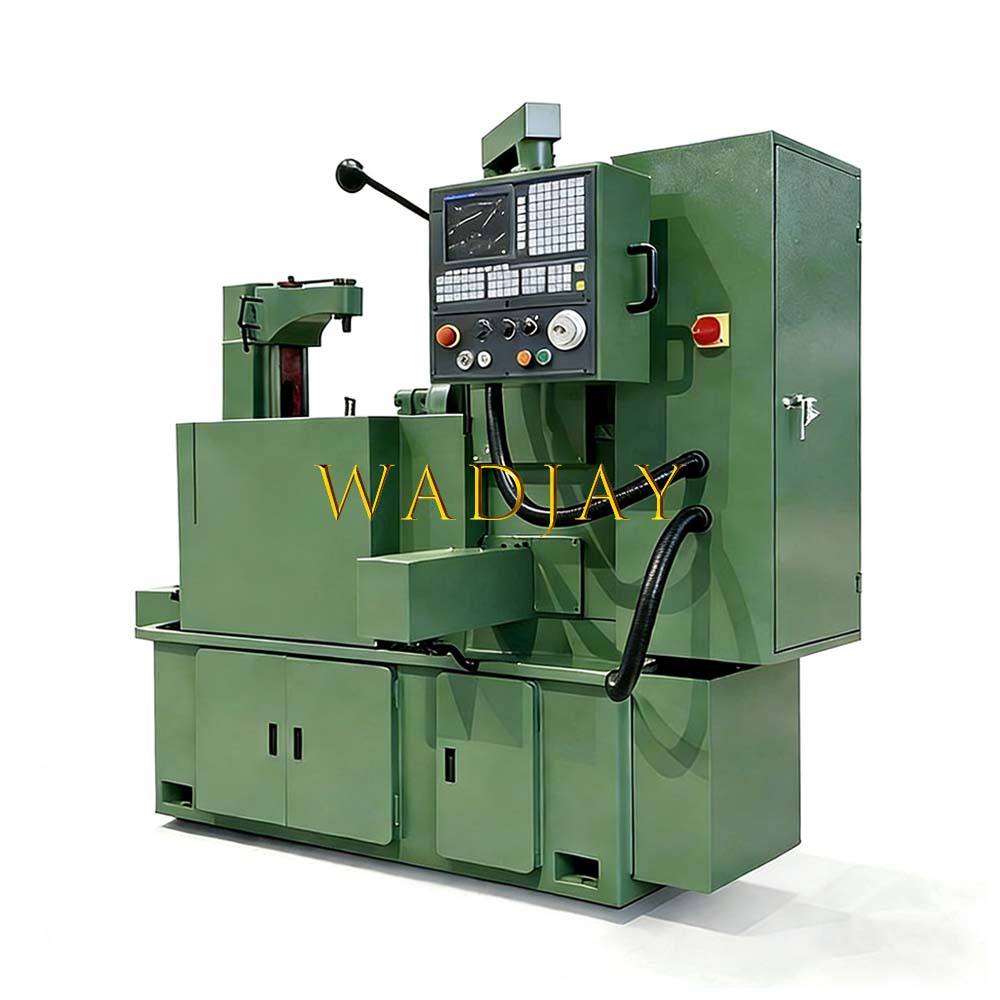

Automatic Gear Hobbing Machine for Cylindrical Cylindrical Gear Hobbing Machine
Model: YK3150
Quick Specifications
| Working Area: | 2300X1200X1800 mm |
| Spindle Speed: | 1 - 8000 r.p.m |
| Accuracy: | 0.01 |
| Tool Capacity: | 24 |
Product Video
Watch on YouTube for best quality
Description
Automatic Gear Hobbing Machine for precision mass production of cylindrical spur gears, helical gears, and worm gears. Features a SIEMENS CNC system, AC servo motors, and two-axis control, with max. 10mm module capacity, 800mm workpiece diameter, and 40-200 RPM spindle speed. Its rigid construction and hydraulic worktable ensure stable operation for workshops and plants. CE/ISO certified.
Technical Specifications
Main technical parameters | Units | Y54 |
Maximum modulus | mm | 6 |
Maximum workpiece diameter | mm | 462 |
Largest workpiece diameter internal teeth | mm | 550 |
Maximum workpiece pitch diameter (internal tooth) | mm | 400 |
Maximum tooth width external tooth/internal tooth | mm | 105/75 |
Maximum helix angle of the helical tooth (when the spiral guide is installed) | ° | 23 |
Maximum distance from the axis of the knife to the worktable | mm | 350 |
Maximum movement distance of the rotary table from the gear shaper cutter | mm | 0.5 |
Outer diameter of the sleeve of the spindle of the machine tool table | mm | 240 |
Diameter of the small end of the taper hole of the spindle of the machine tool table | mm | 40 |
Taper of the spindle taper of the machine tool table | / | 1:10 |
Maximum stroke of the tool | mm | 125 |
Distance from the support surface of the gearshaper cutter to the worktable surface of the machine tool | mm | 35- 160 |
Maximum lateral movement of the tool post | mm | 510 |
Index plate used to adjust the tooth height shows the movement of the tool holder per grid | mm | 0.02 |
Features
- High-Capacity Processing – Maximum 800mm workpiece diameter with 10mm module capacity for versatile gear production
- Advanced CNC Control – SIEMENS CNC system with AC servo motors for precise two-axis operation
- Flexible Machining Options – Supports forward/backward cutting and axial/radial feed operations
- Robust Construction – Heavy-duty 5500kg design with exceptional rigidity for stable precision machining
- Wide Application Range – Suitable for cylindrical spur gears, helical gears, worm gears, and sprockets
- Efficient Spindle System – 40-200 RPM spindle speed range with 8-step rotation control
- Versatile Tool Compatibility – Supports hob mandrel diameters of 22, 27, 32, and 40mm with Morse 5 taper
- Quality Assurance – CE certified with high working accuracy and easy operation/maintenance features
