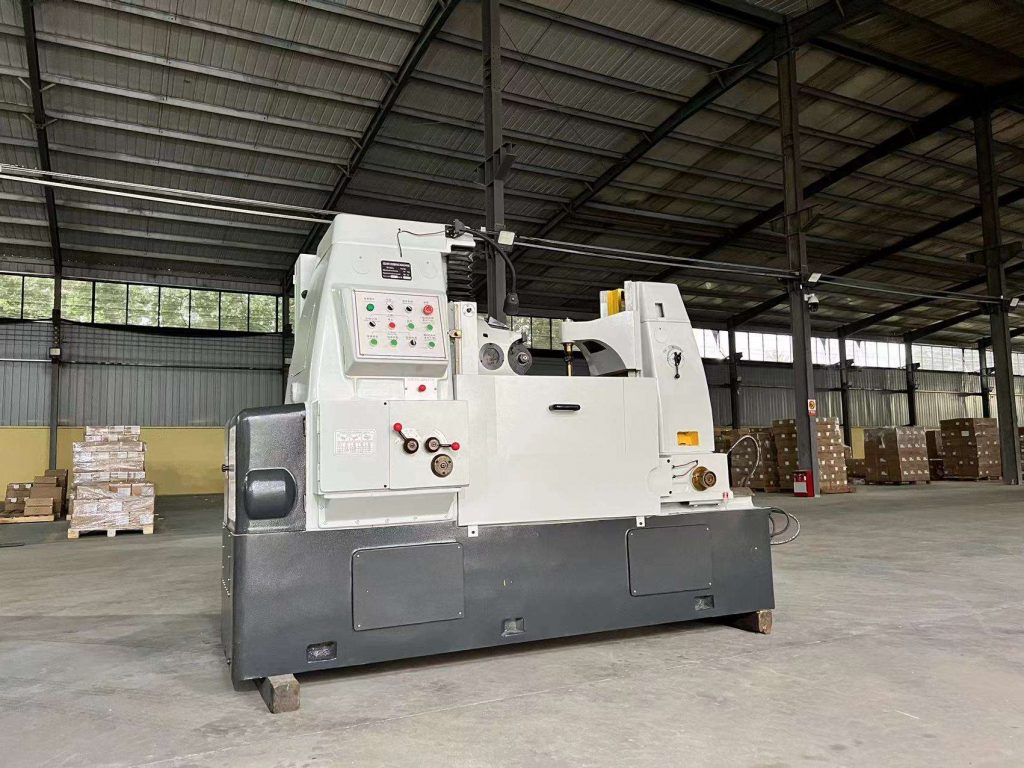

Y3180 Heavy-Duty Universal Gear Hobbing Machine
Model: Y3180
Quick Specifications
| Working Area: | 4500 × 2300 × 2800mm |
| Spindle Speed: | 10 - 160r/min |
| Accuracy: | 0.125 - 3.15 |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | Y3180 Standard Value |
|---|---|---|
| Max. Machining Module | mm | 10 |
| Max. External Gear Diameter | mm | 800 |
| Max. Workpiece Height | mm | 900 |
| Max. Gear Face Width | mm | 200 |
| Hob Spindle Speed Range | r/min | 10 – 160 |
| Main Motor Power | kW | 11 |
| Table Rotation Speed | r/min | 0.125 – 3.15 |
| Net Weight | kg | 7500 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 4500 × 2300 × 2800 |
Features
Reinforced cast iron bed and column eliminate chatter during extreme cutting loads, delivering superior surface finish and long-term dimensional stability for large-module gears.
✅ High-Torque Cutting Performance
11kW main motor delivers powerful cutting force for straight, helical, and bevel gears, supporting roughing and finishing operations on carbon steel, alloy steel, and cast iron workpieces.
✅ Large Workpiece Compatibility
Supports workpieces up to 800mm in diameter and 900mm in height, making it ideal for heavy machinery and wind power gear components.
✅ Precision Mechanical Transmission
Smooth gear drive system ensures accurate gear ratio and feed control, delivering consistent tooth profile accuracy for high-tolerance parts.
✅ Versatile Gear Processing
Suitable for spur gears, helical gears, worm gears, and splines, covering 98% of common gear manufacturing needs in heavy industry.
✅ Centralized Lubrication System
Automatic lubrication for key moving parts reduces wear and tear, extending machine service life and ensuring stable continuous operation.
✅ Global Export Ready
CE-certified, with customizable voltage and complete export documentation, suitable for international shipping and overseas project delivery.
