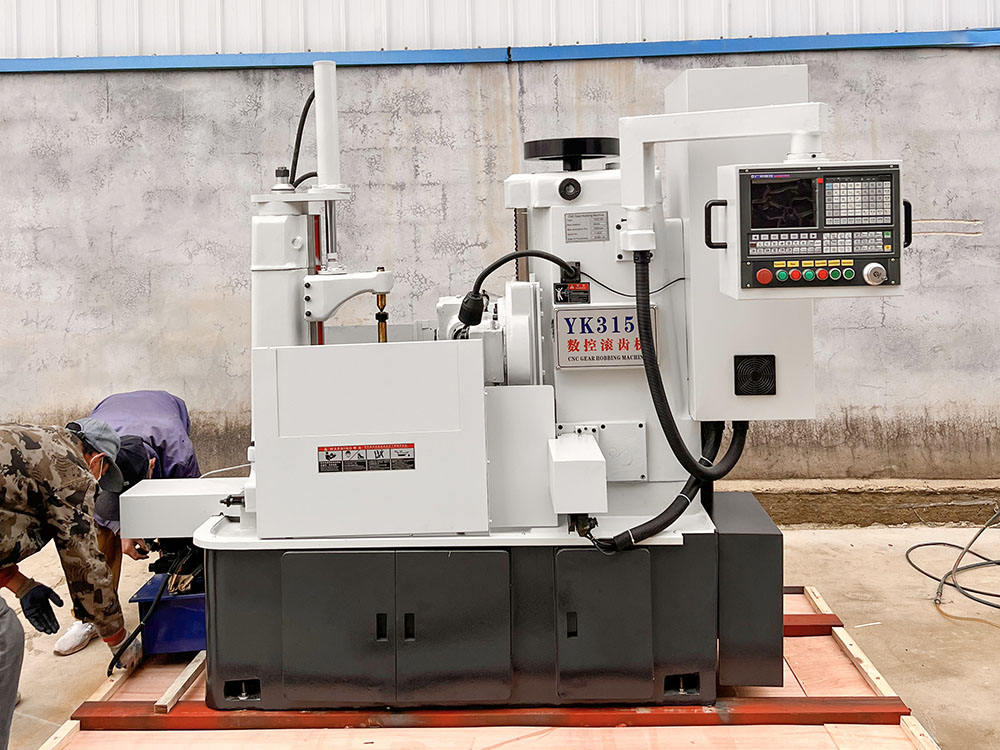

YK3150 CNC Gear Hobbing Machine
Model: YK3150
Quick Specifications
| Working Area: | 3200 × 2200 × 2600mm |
| Spindle Speed: | 100 - 1200r/min |
| Accuracy: | GB/T 6 (ISO 6) |
| Tool Capacity: | 3-Axis CNC Servo System |
Product Video
Description
Technical Specifications
| Parameter | Unit | YK3150 Standard Value |
|---|---|---|
| Max. Machining Module | mm | 8 |
| Max. External Gear Diameter | mm | 500 |
| Max. Gear Face Width | mm | 200 |
| Spindle Speed Range | r/min | 100 – 1200 |
| Main Motor Power | kW | 7.5 |
| Control System | – | 3-Axis CNC Servo System |
| Machining Accuracy Grade | – | GB/T 6 (ISO 6) |
| Net Weight | kg | 5500 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 3200 × 2200 × 2600 |
Features
✅ Fully CNC Automated Operation
3-axis independent servo drive enables automatic gear cutting, tool compensation, and multi-step programming, reducing human error by 90% and improving production efficiency by 60% compared to manual gear hobbing machines.
✅ High-Rigidity Precision Structure
Reinforced cast iron bed and hardened guideways ensure zero deflection during high-speed cutting, delivering superior surface finish and long-term dimensional stability for precision gears.
✅ Versatile Gear Machining Capability
Supports external gears, helical gears, spline shafts, and worm gears, covering 95% of common gear processing needs in precision manufacturing.
✅ User-Friendly Pendant Control
Ergonomic hanging control panel with touchscreen operation, 3D simulation, and one-click programming, reducing operator training time and enabling complex gear processing in minutes.
✅ Complete Safety & Protection System
Fully enclosed protective structure, emergency stop, overload protection, and automatic chip removal, ensuring operator safety and a clean workshop environment.
✅ Centralized Lubrication System
Automatic centralized lubrication for key moving parts reduces wear and tear, extending machine service life and ensuring stable operation.
✅ Global Export Ready
CE-certified, with customizable voltage, control system, and complete export documentation, suitable for international shipping and global customer projects.
